KE10.6100.109

Active

SCHURTER Inc.

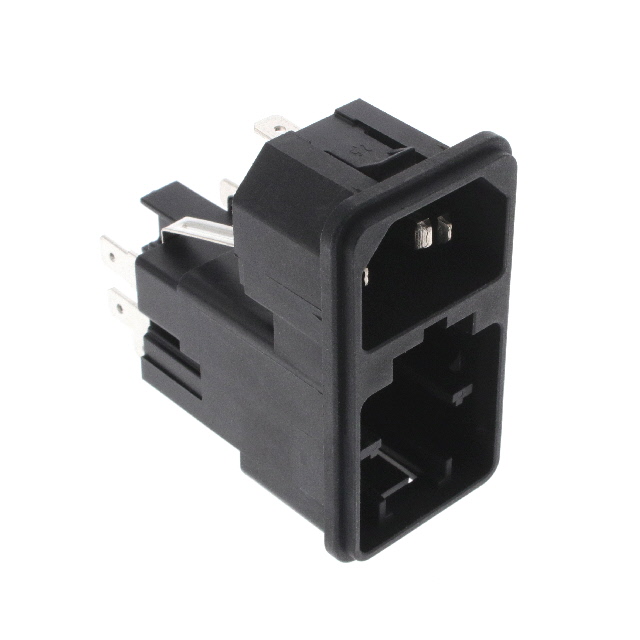

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	KE10.6100.109	KE10.6100 Series

Accomodates a Fuse	True	True
Approval Agency	UL, ENEC, CSA	UL, ENEC, CSA, cURus, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Features	Voltage Selector	Voltage Selector
Filter Type	Unfiltered - Commercial	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate	Drawer Sold Separate
Ingress Protection	IP40	IP40
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In, Flange
Panel Cutout Dimensions [x]	27.5 mm	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm	52.5 mm
Panel Thickness [x]	2.5 mm	2.5 mm
Panel Thickness [x]	0.098 in	0.098 in
Termination	0.189 ", 4.8 mm	0.189 - 4.8 "
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14

Part	Voltage Rating - Appliance Inlet	Material Flammability Rating	Filter Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Current Rating - Appliance Inlet	Features	Fuse Holder, Drawer	Connector Style	Ingress Protection	Connector Type	Panel Thickness [x]	Panel Thickness [x]	Mounting Type	Termination	Termination
SCHURTER Inc. KE10.6100.505	250 VAC	UL94 V-0	Unfiltered - Commercial	CSA, ENEC, UL	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module
SCHURTER Inc. KE10.6100.109	250 VAC	UL94 V-0	Unfiltered - Commercial	CSA, ENEC, UL	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module	2.5 mm	0.098 in	Panel Mount, Snap-In	0.189 ", 4.8 mm	Quick Connect
SCHURTER Inc. KE10.6100.151	250 VAC	UL94 V-0	Unfiltered - Commercial	cURus, ENEC	27.5 mm	52.5 mm	10 A	Voltage Selector	Drawer Sold Separate	IEC 320-C14	IP40	Receptacle, Male Blades - Module			Flange, Panel Mount	0.189 ", 4.8 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 19.15

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
