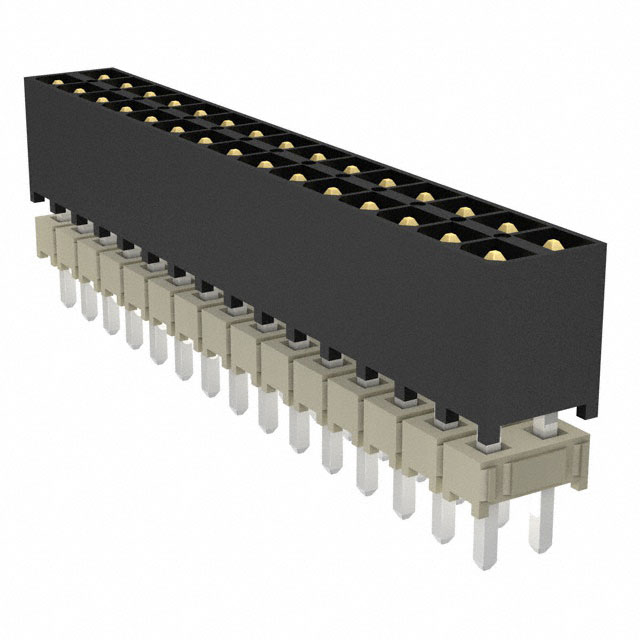

IPT1-115-02-L-D

Active

Samtec Inc.

CONN WIRE TO BOARD HDR 30 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE MINI MATE® TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" Mini Mate® Isolated Power Connector Terminal Strip +1

IPT1-115-02-L-D

Active

Samtec Inc.

CONN WIRE TO BOARD HDR 30 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE MINI MATE® TUBE

Deep-Dive with AI

DocumentsDatasheet .100" Mini Mate® Isolated Power Connector Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPT1-115-02-L-D

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.94 mm
Contact Length - Mating	0.155 in
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.366 in
Insulation Height	9.3 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.94 mm
Overall Contact Length	0.47 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	775 VAC, 1095 VDC

IPT1-115 Series

Part	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Height	Insulation Height	Material Flammability Rating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Contact Length - Mating	Contact Length - Mating	Fastening Type	Voltage Rating	Termination	Mounting Type	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Features	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. IPT1-115-09-S-D	0.097 in	2.47 mm	Shrouded - 4 Wall	30.3 mm	1.193 "	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Through Hole	Black	Phosphor Bronze	30 Áin	0.76 Ám	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold
Samtec Inc. IPT1-115-02-L-D	0.104 in	2.64 mm	Shrouded - 4 Wall	9.3 mm	0.366 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Through Hole	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold	11.94 mm	0.47 "
Samtec Inc. IPT1-115-01-L-D-VS			Shrouded - 4 Wall	6.35 mm	0.25 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Surface Mount	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold
Samtec Inc. IPT1-115-01-L-D-VS-TR			Shrouded - 4 Wall	6.35 mm	0.25 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Surface Mount	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold
Samtec Inc. IPT1-115-01-S-D-VS-LC-K			Shrouded - 4 Wall	6.35 mm	0.25 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Surface Mount	Black	Phosphor Bronze	30 Áin	0.76 Ám	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold			Board Lock Pick and Place
Samtec Inc. IPT1-115-01-S-D-DH-A			Shrouded - 4 Wall			UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Surface Mount Right Angle	Black	Phosphor Bronze	30 Áin	0.76 Ám	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold			Board Guide
Samtec Inc. IPT1-115-01-S-D-VS-A			Shrouded - 4 Wall	6.35 mm	0.25 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Surface Mount	Black	Phosphor Bronze	30 Áin	0.76 Ám	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold			Board Guide
Samtec Inc. IPT1-115-01-L-D-VS-FL-PL			Shrouded - 4 Wall	6.35 mm	0.25 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Friction Lock	775 VAC 1095 VDC	Solder	Surface Mount	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold			Board Lock Pick and Place
Samtec Inc. IPT1-115-04-L-D			Shrouded - 4 Wall	12.3 mm	0.484 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Through Hole	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold		14.99 mm		0.59 in	0.106 in	2.69 mm
Samtec Inc. IPT1-115-03-L-D	0.085 in	2.16 mm	Shrouded - 4 Wall	11.3 mm	0.445 in	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	Square	2.3 A	Tin	30	3.94 mm	0.155 in	Push-Pull	775 VAC 1095 VDC	Solder	Through Hole	Black	Phosphor Bronze	10 çin	0.25 çm	Header	All	2	-55 °C	125 °C	Male Pin	0.1 in	2.54 mm	Gold		13.46 mm		0.53 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.27
		25	$ 4.77
		50	$ 4.43
		100	$ 4.22
		500	$ 3.94
