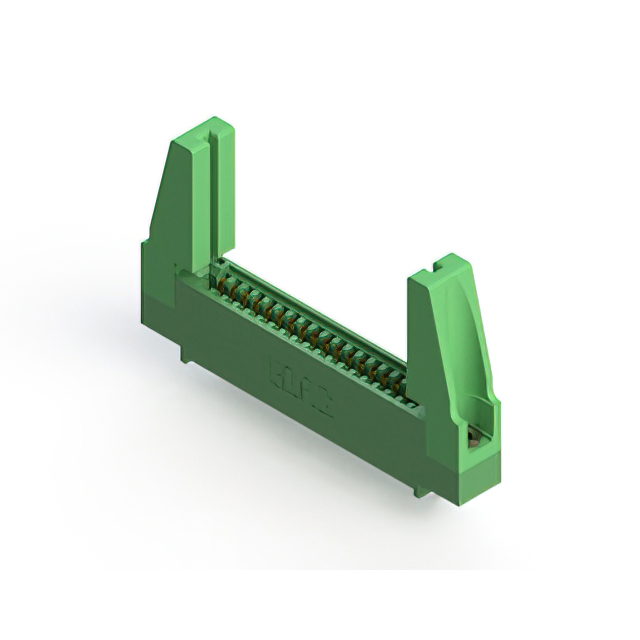

345-019-520-488
ActiveEDAC Inc.
CONN EDGE SINGLE FML 19POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-019-520-488
ActiveEDAC Inc.
CONN EDGE SINGLE FML 19POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-019-520-488 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-019 Series
...
| Part | Flange Feature | Card Type | Number of Positions | Color | Mounting Type | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Features | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Read Out | Gender | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Type | Number of Rows | Contact Material | Material - Insulation | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | ||||
EDAC Inc. | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 19 | Green | Through Hole Right Angle | Gold | -40 °C | 105 ░C | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | ||||
EDAC Inc. | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | |||||
EDAC Inc. | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | 19 | Green | Through Hole Right Angle | Gold | -40 °C | 105 ░C | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | ||||
EDAC Inc. | Flush Mount Top Opening Unthreaded | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | 3.25 mm | 0.128 " | |||
EDAC Inc. | Floating Bobbin Top Mount Opening | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | 2.95 mm | 0.116 in | |||
EDAC Inc. | Flush Mount Side Opening Unthreaded | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | 3.25 mm | 0.128 " | |||
EDAC Inc. | Floating Bobbin Flush Mount | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic | 2.95 mm | 0.116 in | |||
EDAC Inc. | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 19 | Green | Through Hole | Gold | -40 °C | 105 ░C | Card Guides | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 10 Áin | 0.25 Ám | Single | Female | 2.54 mm | 0.1 in | 19 | Cantilever | 1 | Copper Alloy | Polyester Thermoplastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.56 | |
Description
General part information
345-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
