AN7522

Obsolete

Panasonic Industrial Automation Sales

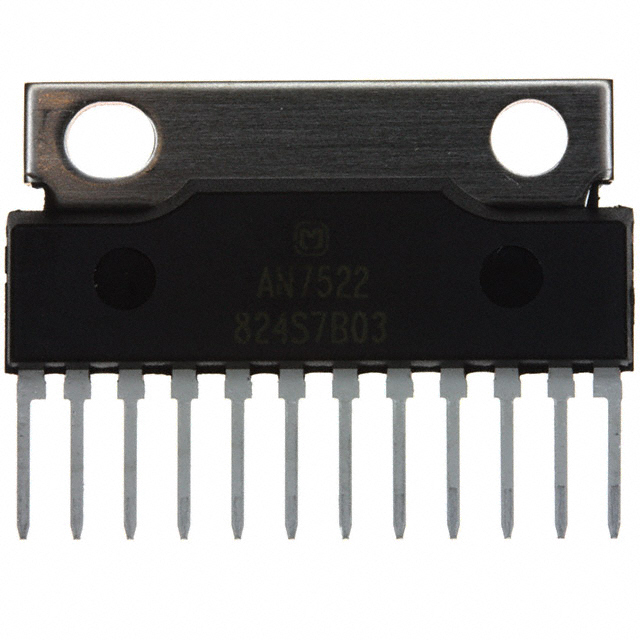

IC AMP CLASS AB STEREO 3W 12SIL

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

IC AMP CLASS AB STEREO 3W 12SIL

Technical Specifications

Parameters and characteristics for this part

Specification	AN7522

Features	Volume Control, Standby
Max Output Power x Channels @ Load	3 W
Max Output Power x Channels @ Load [custom]	2
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	2-Channel (Stereo)
Package / Case	12-SIP + Tab
Supplier Device Package	12-SIL
Type	Class AB
Voltage - Supply [Max]	13.5 V
Voltage - Supply [Min]	3.5 V

Part	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Output Type	Mounting Type	Features	Supplier Device Package	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Panasonic Industrial Automation Sales AN7522	3 W	2	2-Channel (Stereo)	Through Hole	Standby Volume Control	12-SIL	Class AB	13.5 V	3.5 V	12-SIP + Tab	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class AB 12-SIL
