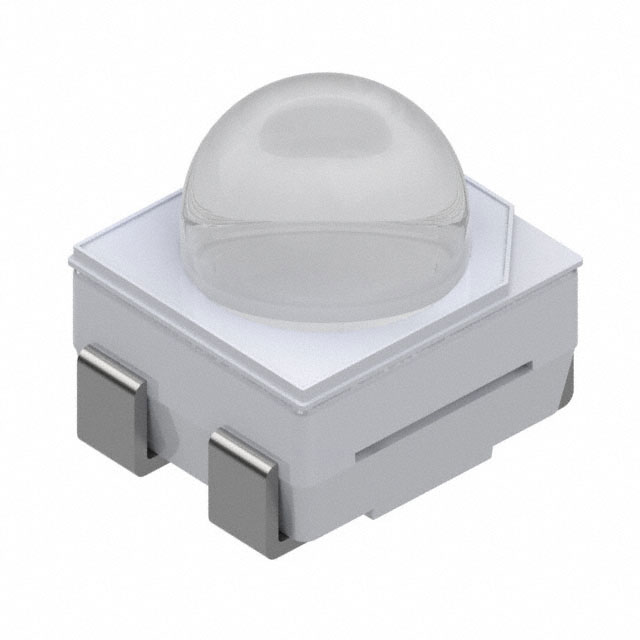

IN-P36ATEB

Active

Inolux

LED BLUE CLEAR 4PLCC SMD

Search across all available documentation for this part.

Active

Inolux

LED BLUE CLEAR 4PLCC SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 3V 4-SMD, J-Lead

Technical documentation and resources

Parameters and characteristics commom to parts in this series

TOP VIEW / PLCC 4 / 3.6 X 3.1 X 3.1 / LENS

Part	Wavelength - Dominant	Lens Transparency	Current - Test	Color	Lens Style	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Viewing Angle	Mounting Type	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating
Inolux IN-P36BTEG	523 nm	Clear	30 mA	Green	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm	3.3 mm	60 °	Surface Mount	3 V	4-SMD, J-Lead	6000 mcd
Inolux IN-P36ATEUW.27		Diffused	30 mA	White	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm		30 °	Surface Mount	3 V	4-SMD, J-Lead	7000 mcd
Inolux IN-P36ATEUW.45		Diffused	30 mA	White	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm		30 °	Surface Mount	3 V	4-SMD, J-Lead	7500 mcd
Inolux IN-P36BTEUW.50		Diffused	30 mA	White	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm	3.3 mm	60 °	Surface Mount	3 V	4-SMD, J-Lead	5800 mcd
Inolux IN-P36BTEUW.27		Diffused	30 mA	White	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm	3.3 mm	60 °	Surface Mount	3 V	4-SMD, J-Lead	5000 mcd
Inolux IN-P36ATEG	523 nm	Clear	30 mA	Green	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm		30 °	Surface Mount	3 V	4-SMD, J-Lead	11000 mcd
Inolux IN-P36ATFR	621 nm	Clear	50 mA	Red	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm		30 °	Surface Mount	3 V	4-SMD, J-Lead	11000 mcd
Inolux IN-P36ATEB	465 nm	Clear	30 mA	Blue	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm		30 °	Surface Mount	3 V	4-SMD, J-Lead	2800 mcd
Inolux IN-P36BTEUW.45		Diffused	30 mA	White	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm	3.3 mm	60 °	Surface Mount	3 V	4-SMD, J-Lead	5500 mcd
Inolux IN-P36BTFY	590 nm	Clear	80 mA	Yellow	Round with Domed Top	4-PLCC	3.1 mm	3.6 mm	3.3 mm	60 °	Surface Mount	2.6 V	4-SMD, J-Lead	6000 mcd
