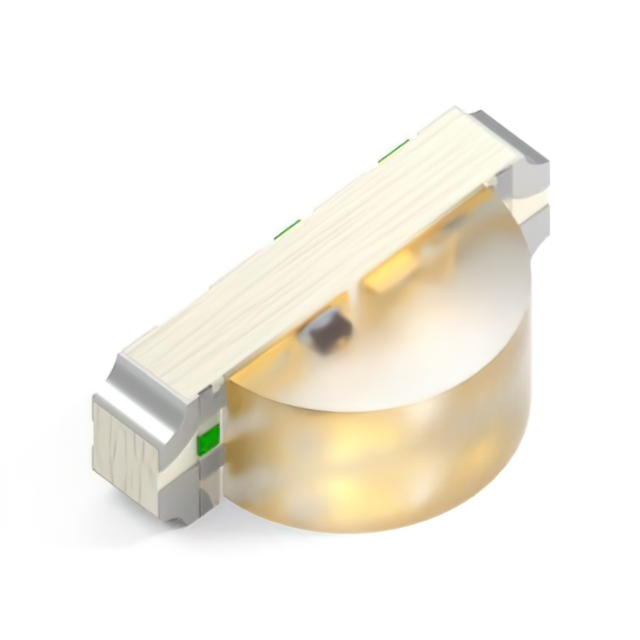

XZMDKDGCBD56W
ActiveSunLED
LED RGB CLEAR CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMDKDGCBD56W
ActiveSunLED
LED RGB CLEAR CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMDKDGCBD56W |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 79 mcd |
| Millicandela Rating [custom] | 297 mcd |
| Millicandela Rating [custom] | 69 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 120 ° |
| Wavelength - Dominant | 465 nm, 630 nm, 525 nm |
| Wavelength - Peak [custom] | 515 nm |
| Wavelength - Peak [custom] | 645 nm |
| Wavelength - Peak [custom] | 460 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.48 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.52 | |||
| Digi-Reel® | 1 | $ 1.48 | ||
| 10 | $ 0.93 | |||
| 100 | $ 0.69 | |||
| 500 | $ 0.64 | |||
| 1000 | $ 0.52 | |||
| Tape & Reel (TR) | 2000 | $ 0.50 | ||
| 6000 | $ 0.49 | |||
| 10000 | $ 0.47 | |||
Description
General part information
XZMDKDGCBD56 Series
Red, Green, Blue (RGB) 630nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 1.95V Red, 3.3V Green, 3.3V Blue 4-SMD, No Lead
