EGG.2B.810.CLL1

Active

LEMO

CONN RCPT FMALE 11P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.2B.810.CLL1

Active

LEMO

CONN RCPT FMALE 11P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.16
		10	$ 71.72
		25	$ 68.96
		50	$ 66.66
		100	$ 62.99

Description

General part information

EGG.2B Series

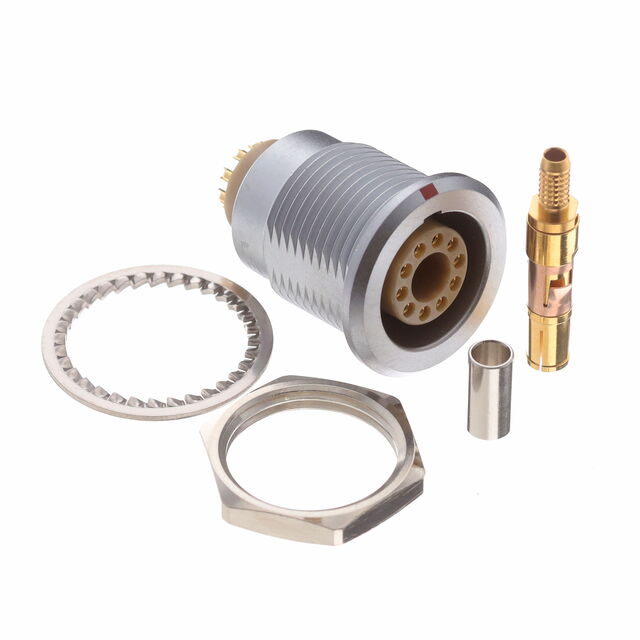

11 (10 + 1 Coax) Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.2B.810.CLL1	EGG.2B Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert, Receptacle, Male Pins, Receptacle Housing
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	39.4 - 59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1 - 1.5 Ám
Contact Material	Bronze	Bronze, Brass
Contact Shape	-	Circular
Contact Size	-	0.5 - 2 mm
Contact Termination	-	Crimp, Solder Cup
Contact Type	-	Socket, Crimp and Solder Cup, Crimp
Current Rating (Amps)	7 A	2 - 25 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included
Number of Positions	-	2 - 26
Number of Positions	-	1
Number of Positions	-	16
Number of Positions	-	1
Number of Positions	-	6
Number of Positions	-	10
Number of Positions	-	1
Number of Positions	-	1
Number of Positions [custom]	11	11
Number of Positions [custom]	1	1
Number of Positions [custom]	10	4 - 10
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	810	13 - 810
Shell Size - Insert	-	96J, 92C
Shielding	Shielded	Shielded, Unshielded
Termination	-	Solder, Crimp
Type	-	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG	-	12 - 28 AWG
Wire Gauge or Range - AWG	-	16 - 32 AWG
Wire Gauge or Range - mm˛	-	0.34 - 2.5 mm˛
Wire Gauge or Range - mm˛	-	0.14 - 1.5 mm˛
Wire Gauge or Range - mm²	-	0.09 - 1.5 mm²
Wire Gauge or Range - mm²	-	0.04 - 1 mm²

EGG.2B Series

CONN RCPT FMALE 6POS GOLD SOLDER

...

Part	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation	Shell Material	Contact Finish - Mating	Mounting Feature	Shielding	Fastening Type	Ingress Protection	Current Rating (Amps)	Color	Material Flammability Rating	Shell Size - Insert	Primary Material	Mounting Type	Number of Positions	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Type	Contact Finish	Contact Size	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Type	Number of Positions [custom]	Number of Positions
LEMO EGG.2B.306.CLN	Receptacle, Female Sockets	Solder	-55 °C	250 °C	Polyetheretherketone (PEEK)	G	Brass	Gold	Bulkhead - Rear Side Nut	Shielded	Push-Pull	IP50	12 A	Silver	UL94 V-0	306	Metal	Panel Mount, Through Hole	6	Bronze	59 Áin	1.5 Ám	Chrome
LEMO EGG.2B.810.ZLL	Female Sockets, Insert		-55 °C	250 °C	Polyetheretherketone (PEEK)	G		Gold		Shielded		IP50	7 A		UL94 V-0	810				Bronze	59 Áin	1.5 Ám		Insert Only, Requires Shell	11	1	10
LEMO EGG.2B.665.ZZK																				Bronze								18 AWG	20 AWG	Crimp	Machined, Signal	Gold	1.3 mm	1 mm²	0.5 mm²	Socket
LEMO EGG.2B.804.CLL1	Receptacle, Female Sockets		-55 °C	250 °C	Polyetheretherketone (PEEK)	G	Brass	Gold	Bulkhead - Rear Side Nut	Shielded	Push-Pull	IP50	7 A	Silver	UL94 V-0	804	Metal			Bronze	59 Áin	1.5 Ám	Chrome				4										1
LEMO EGG.2B.303.CLL	Receptacle, Female Sockets		-55 °C	250 °C	Polyetheretherketone (PEEK)	G	Brass	Gold	Bulkhead - Rear Side Nut	Shielded	Push-Pull	IP50	17 A	Silver	UL94 V-0	303	Metal			Bronze	59 Áin	1.5 Ám	Chrome
LEMO EGG.2B.318.CLN	Receptacle, Female Sockets	Solder	-55 °C	250 °C	Polyetheretherketone (PEEK)	G	Brass	Gold	Bulkhead - Rear Side Nut	Shielded	Push-Pull	IP50	5.5 Amps	Silver	UL94 V-0	318	Metal	Panel Mount, Through Hole	18	Bronze	59 Áin	1.5 Ám	Chrome
LEMO EGG.2B.319.ZYM	Female Sockets, Insert	Crimp	-55 °C	250 °C	Polyetheretherketone (PEEK)	G		Gold		Shielded		IP50	5 A		UL94 V-0	319			19	Bronze	59 Áin	1.5 Ám		Insert Only, Requires Shell
LEMO EGG.2B.436.CJA	Male Pins, Receptacle		-55 °C	250 °C	Polyetheretherketone (PEEK)	G	Brass	Gold	Bulkhead - Rear Side Nut	Shielded	Push-Pull	IP50	2.5 A	Silver	UL94 V-0	436	Metal		6	Brass	39.4 µin	1 µm	Chrome
LEMO EGG.2B.314.ZLL	Female Sockets, Insert		-55 °C	250 °C	Polyetheretherketone (PEEK)	G		Gold		Shielded		IP50	6.5 A		UL94 V-0	314			14	Bronze	59 Áin	1.5 Ám		Insert Only, Requires Shell
LEMO EGG.2B.316.ZYM	Female Sockets, Insert	Crimp	-55 °C	250 °C	Polyetheretherketone (PEEK)	G		Gold		Shielded		IP50	6 A		UL94 V-0	316				Bronze	59 Áin	1.5 Ám		Insert Only, Requires Shell														16
