CCS15S30,L3IDTF

Obsolete

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 20V 1.5A CST2C

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

DIODE SCHOTTKY 20V 1.5A CST2C

Technical Specifications

Parameters and characteristics for this part

Specification	CCS15S30,L3IDTF

Capacitance @ Vr, F	200 pF
Current - Average Rectified (Io)	1.5 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C

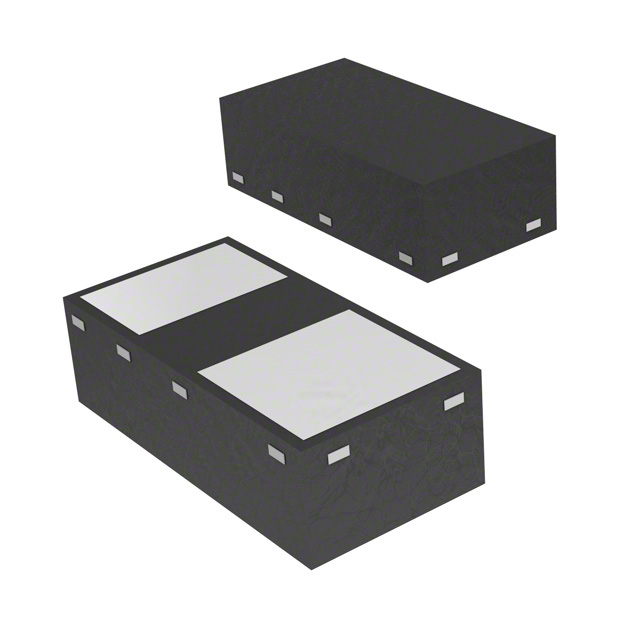

Package / Case	2-SMD, No Lead
Speed	200 mA, 500 ns
Supplier Device Package	CST2C
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	20 V
Voltage - Forward (Vf) (Max) @ If	400 mV

Part	Current - Average Rectified (Io)	Package / Case	Technology	Current - Reverse Leakage @ Vr	Mounting Type	Speed	Capacitance @ Vr, F	Operating Temperature - Junction	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package
Toshiba Semiconductor and Storage CCS15S30,L3IDTF	1.5 A	2-SMD No Lead	Schottky	500 µA	Surface Mount	200 mA 500 ns	200 pF	125 °C	400 mV	20 V	CST2C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 20 V 1.5A Surface Mount CST2C
