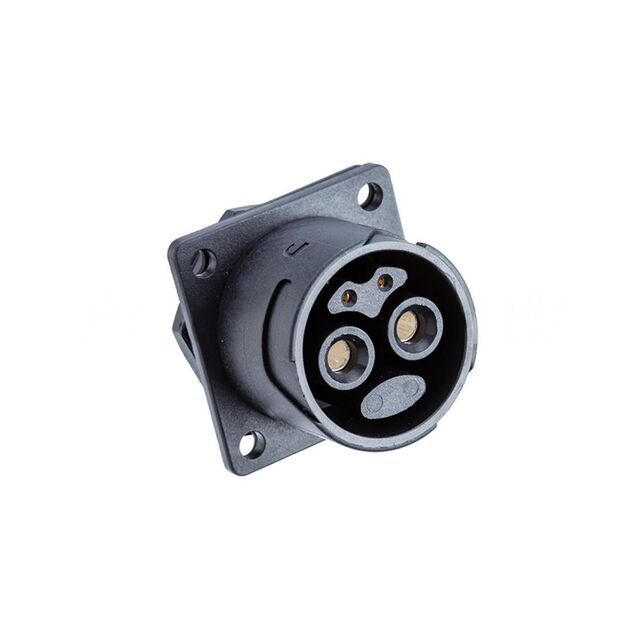

PWMU-06RMFS-TS7001
ActiveAmphenol LTW
PWR, 50+2A, 06P, REAR FASTENED
Deep-Dive with AI
Search across all available documentation for this part.
PWMU-06RMFS-TS7001
ActiveAmphenol LTW
PWR, 50+2A, 06P, REAR FASTENED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PWMU-06RMFS-TS7001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 50 A, 2 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 18.91 | |
Description
General part information
PWMU-06RMFS Series
6 Position Circular Connector Receptacle, Female Sockets Screw
