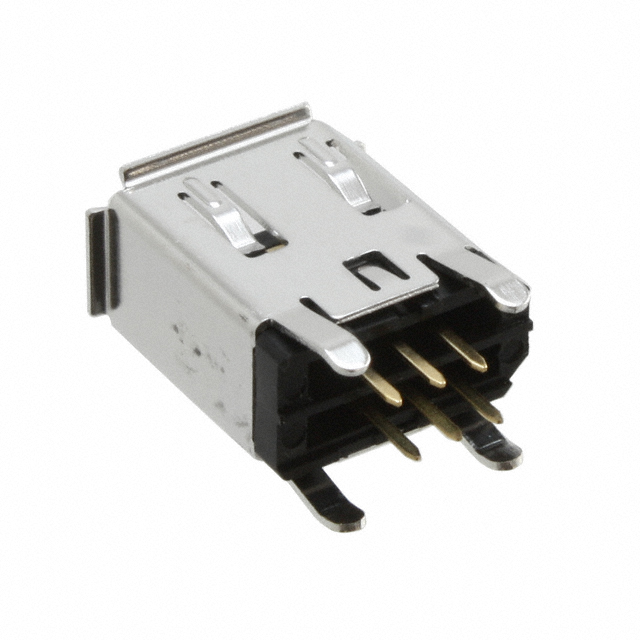

3E106-1230 KV

Active

3M (TC)

A/V CONN, IEEE 1394, PLUG, 6POS, THT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

3M (TC)

A/V CONN, IEEE 1394, PLUG, 6POS, THT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	3E106-1230 KV

Connector Type	Firewire (IEEE 1394)
Contact Finish	Gold
Features	Board Guide
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts [custom]	6
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Copper Alloy
Shielding	Shielded
Termination	Solder
Voltage - Rated	200 VDC
Voltage - Rated	150 VAC

Part	Number of Contacts [custom]	Insulation Color	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Rated	Voltage - Rated	Shielding	Material Flammability Rating	Features	Shell/Shielding Material	Mounting Feature	Gender	Number of Ports	Contact Finish
3M (TC) 3E106-0220KV	6	Black	Solder	Firewire (IEEE 1394)	85 °C	-55 °C	Through Hole Right Angle	200 VDC	150 VAC	Shielded	UL94 V-0	Board Guide	Copper Alloy	Horizontal	Receptacle	1	Gold
3M (TC) 3E106-1230 KV	6	Black	Solder	Firewire (IEEE 1394)	85 °C	-55 °C	Through Hole	200 VDC	150 VAC	Shielded	UL94 V-0	Board Guide	Copper Alloy	Vertical	Receptacle	1	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Firewire (IEEE 1394) Receptacle Connector 6 Position Through Hole
