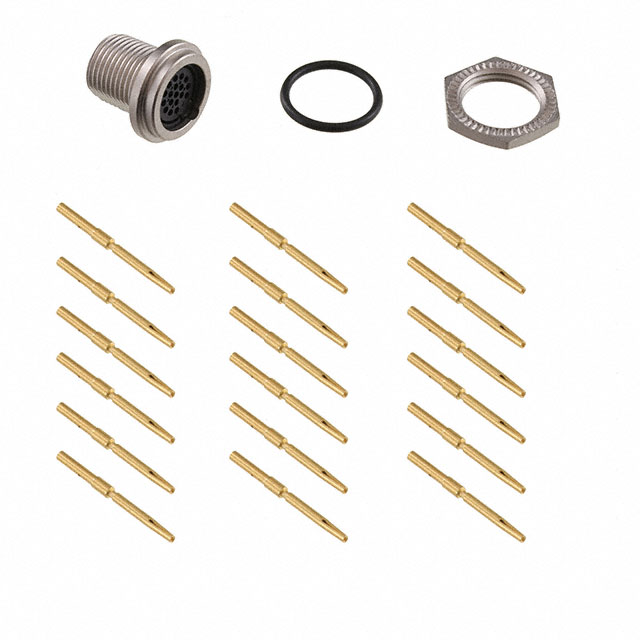

SF7980-18SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 18POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF7980-18SG-300	SF7980 Series

Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Male Pins, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Number of Positions	18	18
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN RCPT MALE 18POS GOLD CRIMP

Part	Insert Material	Ingress Protection	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Color	Termination	Shell Material	Contact Finish - Mating	Connector Type	Shell Finish	Contact Material	Number of Positions	Primary Material	Orientation
Conxall/Switchcraft SF7980-18PG-300	Polyester Resin	IP66/IP68	Shielded	-40 °C	120 °C	Bulkhead - Front Side Nut	Silver	Crimp	Copper Alloy	Gold	Male Pins, Receptacle	Nickel	Copper Alloy	18	Metal	Keyed
Conxall/Switchcraft SF7980-18SG-300	Polyester Resin	IP66/IP68	Shielded	-40 °C	120 °C	Bulkhead - Front Side Nut	Silver	Crimp	Copper Alloy	Gold	Receptacle, Female Sockets	Nickel	Copper Alloy	18	Metal	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.01

General part information

18 Position Circular Connector Receptacle, Female Sockets Crimp

Technical documentation and resources

No documents available
