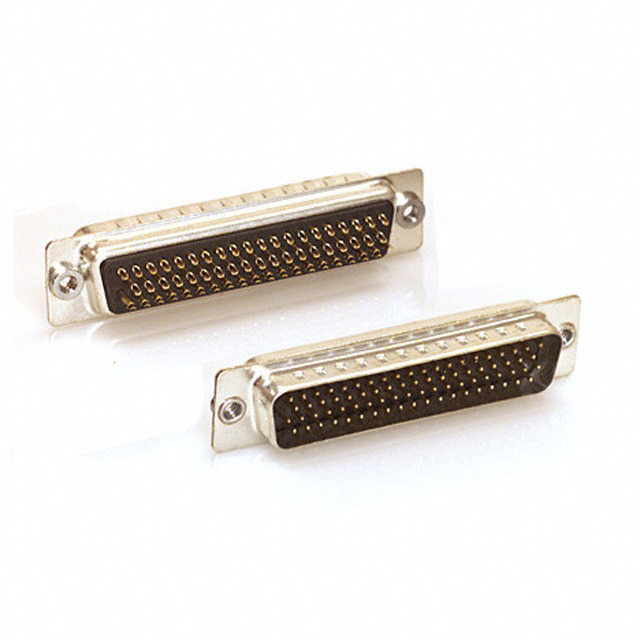

Specification	180-078-102-011

Color	Black
Connector Layout	D, DD, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Type	Signal
Current Rating	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Cable Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Number of Positions	78
Number of Rows	4
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-50 °C
Shell Material	Steel
Shell Size	5
Termination	Solder Cup

180-078 Series

Part	Note	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Connector Style	Connector Type	Number of Rows	Shell Size	Connector Layout	Flange Feature	Mounting Type	Shell Material	Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating	Features	Termination	Contact Finish	Current Rating	Dielectric Material	Color	Contact Material
NorComp Inc. 180-078-273L010	Contacts Not Included	-50 °C	100 °C	78	D-Sub High Density	Receptacle for Female Contacts	4	5	D DD High Density	Cable Side (4-40)	Free Hanging (In-Line)	Steel	Nickel Plated	Signal
NorComp Inc. 180-078-102-011		-50 °C	100 °C	78	D-Sub High Density	Male Pins Plug	4	5	D DD High Density	Cable Side (4-40)	Panel Mount	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0	Grounding Indents	Solder Cup	Gold	2 A	Polybutylene Terephthalate (PBT)	Black
NorComp Inc. 180-078-202L011		-50 °C	100 °C	78	D-Sub High Density	Female Sockets Receptacle	4	5	D DD High Density	Cable Side (4-40)	Panel Mount	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0	Shielded	Solder Cup	Gold	5 A	Polybutylene Terephthalate (PBT)		Brass
NorComp Inc. 180-078-212-021		-50 °C	100 °C	78	D-Sub High Density	Female Sockets Receptacle	4	5	D DD High Density	Board Side (4-40)	Panel Mount Through Hole	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0		Solder	Gold	2 A	Glass Filled Polyester	Black
NorComp Inc. 180-078-102-021		-50 °C	100 °C	78	D-Sub High Density	Male Pins Plug	4	5	D DD High Density	Cable Side (4-40)	Panel Mount	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0	Grounding Indents	Solder Cup	Gold	2 A	Polybutylene Terephthalate (PBT)	Black
NorComp Inc. 180-078-112-021		-50 °C	100 °C	78	D-Sub High Density	Male Pins Plug	4	5	D DD High Density	Board Side (4-40)	Panel Mount Through Hole	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0	Grounding Indents	Solder	Gold	2 A	Glass Filled Polyester	Black
NorComp Inc. 180-078-103L021		-50 °C	100 °C	78	D-Sub High Density	Male Pins Plug	4	5	D DD High Density	Cable Side (4-40)	Panel Mount	Steel	Nickel Plated	Signal	0	Flash	Flash	UL94 V-0	Grounding Indents Shielded	Solder Cup	Gold	5 A	Polybutylene Terephthalate (PBT)		Brass
NorComp Inc. 180-078-202-031		-50 °C	100 °C	78	D-Sub High Density	Female Sockets Receptacle	4	5	D DD High Density	Mating Side (4-40)	Panel Mount	Steel	Tin Plated	Signal	0	Flash	Flash	UL94 V-0		Solder Cup	Gold	2 A	Polybutylene Terephthalate (PBT)	Black
NorComp Inc. 180-078-101L031		-50 °C	100 °C	78	D-Sub High Density	Male Pins Plug	4	5	D DD High Density	Mating Side (4-40)	Panel Mount	Steel	Yellow Chromate Plated	Signal	0	Flash	Flash	UL94 V-0	Shielded	Solder Cup	Gold	2 A	Polybutylene Terephthalate (PBT)		Brass
NorComp Inc. 180-078-272L030	Contacts Not Included	-50 °C	100 °C	78	D-Sub High Density	Receptacle for Female Contacts	4	5	D DD High Density	Mating Side (4-40)	Free Hanging (In-Line)	Steel	Tin Plated	Signal					Shielded
