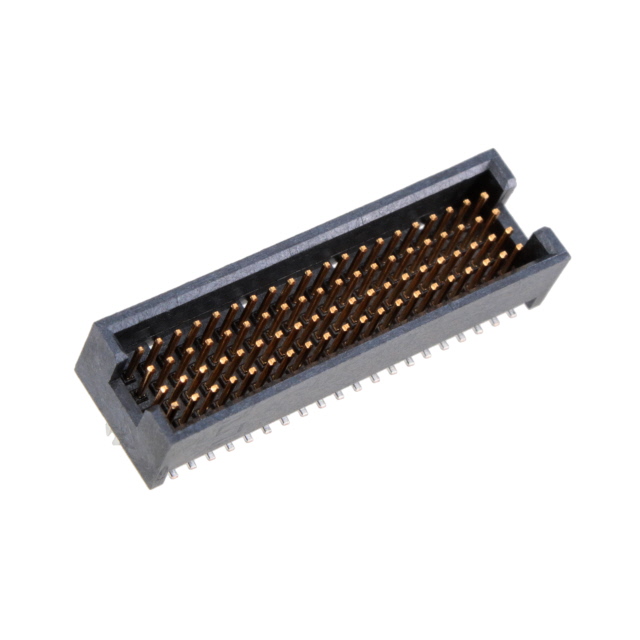

MOLC-120-M1-L-Q-LC

Active

Samtec Inc.

CONN HEADER SMD T/H 80POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MOLC-120-M1-L-Q-LC

Active

Samtec Inc.

CONN HEADER SMD T/H 80POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MOLC-120-M1-L-Q-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.38 mm
Contact Length - Mating	0.133 in
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.6 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Through Hole
Number of Positions	80
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

MOLC-120 Series

Headers & Wire Housings .050" FOURRAY Quad Row Terminal Strip

Part	Contact Shape	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Mated Stacking Heights	Shrouding	Contact Material	Contact Finish - Post	Current Rating (Amps)	Contact Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Color	Contact Finish - Mating	Mounting Type	Connector Type	Contact Length - Post [x]	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Height	Features
Samtec Inc. MOLC-140-01-S-Q-LC	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull	5.97 mm	Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.6 mm	0.22 in	3.38 mm	0.133 in	30 Áin	0.76 Ám	Solder	Black	Gold	Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-120-02-S-Q-P	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place
Samtec Inc. MOLC-130-02-S-Q-P-TR	Square	120	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place
Samtec Inc. MOLC-140-02-S-Q-P	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Pick and Place
Samtec Inc. MOLC-120-M1-L-Q-LC	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.6 mm	0.22 in	3.38 mm	0.133 in	10 çin	0.25 çm	Solder	Black	Gold	Surface Mount Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-140-02-S-Q-LC-P	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Board Lock Pick and Place
Samtec Inc. MOLC-120-02-S-Q	Square	80	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in
Samtec Inc. MOLC-140-31-S-Q	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull	11.43 mm	Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	11.05 mm	0.435 in	3.66 mm	0.144 in	30 Áin	0.76 Ám	Solder	Black	Gold	Through Hole	Header	0.075 in	1.91 mm	0.05 in	1.27 mm
Samtec Inc. MOLC-140-02-S-Q	Square	160	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in
Samtec Inc. MOLC-145-02-S-Q-LC-P	Square	180	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Push-Pull		Shrouded - 4 Wall	Phosphor Bronze	Tin	2.6 A	Male Pin	UL94 V-0	All	5.45 mm		3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Black	Gold	Surface Mount	Header			0.05 in	1.27 mm	0.215 in	Board Lock Pick and Place

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 22.72
		10	$ 21.51
		25	$ 20.70
		50	$ 20.19
		100	$ 18.84

Description

General part information

MOLC-120 Series

Headers & Wire Housings .050" FOURRAY Quad Row Terminal Strip
