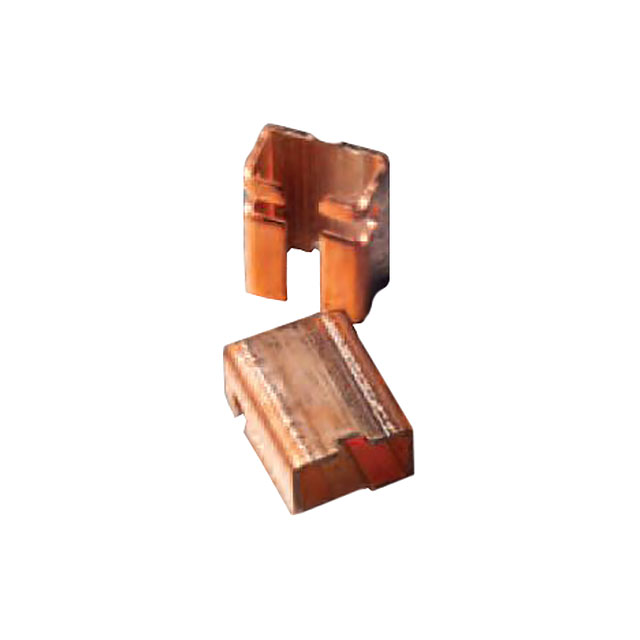

PSG4NTEB1L00F

Active

KOA Speer Electronics, Inc.

RES 0.001 OHM 1% 8W NONSTANDARD

Search across all available documentation for this part.

Active

KOA Speer Electronics, Inc.

RES 0.001 OHM 1% 8W NONSTANDARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSG4NTEB1L00F	PSG4NT Series

Composition	Metal Element	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant	Automotive AEC-Q200, Current Sense, Moisture Resistant
Height - Seated (Max)	3 mm	3 mm
Height - Seated (Max)	-	3.25 mm
Height - Seated (Max) [Max]	0.118 in	0.118 - 0.128 in
Number of Terminations	4	4
Operating Temperature [Max]	347 °F	347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Package / Case	Nonstandard	Nonstandard
Power (Watts)	8 W	8 - 10 W
Ratings	AEC-Q200	AEC-Q200
Resistance	1 mOhms	0.5 - 1 mOhms
Size / Dimension [x]	6.9 mm	6.9 mm
Size / Dimension [x]	0.272 in	0.272 in
Size / Dimension [y]	6.6 mm	6.6 mm
Size / Dimension [y]	0.26 "	0.26 "
Temperature Coefficient	50 ppm/°C	50 ppm/°C
Tolerance	1 %	1 %

RES 0.001 OHM 1% 8W NONSTANDARD

Part	Tolerance	Composition	Power (Watts)	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Features	Ratings	Package / Case	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Terminations	Height - Seated (Max) [Max]
KOA Speer Electronics, Inc. PSG4NTEB1L00F	1 %	Metal Element	8 W	1 mOhms	-65 ░C	347 °F	3 mm	0.118 in	Automotive AEC-Q200, Current Sense, Moisture Resistant	AEC-Q200	Nonstandard	50 ppm/°C	6.6 mm	6.9 mm	0.26 "	0.272 in	4
KOA Speer Electronics, Inc. PSG4NTEBL500F	1 %	Metal Element	10 W	0.5 mOhms	-65 ░C	347 °F		0.128 in	Automotive AEC-Q200, Current Sense, Moisture Resistant	AEC-Q200	Nonstandard	50 ppm/°C	6.6 mm	6.9 mm	0.26 "	0.272 in	4	3.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 mOhms ±1% 8W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
