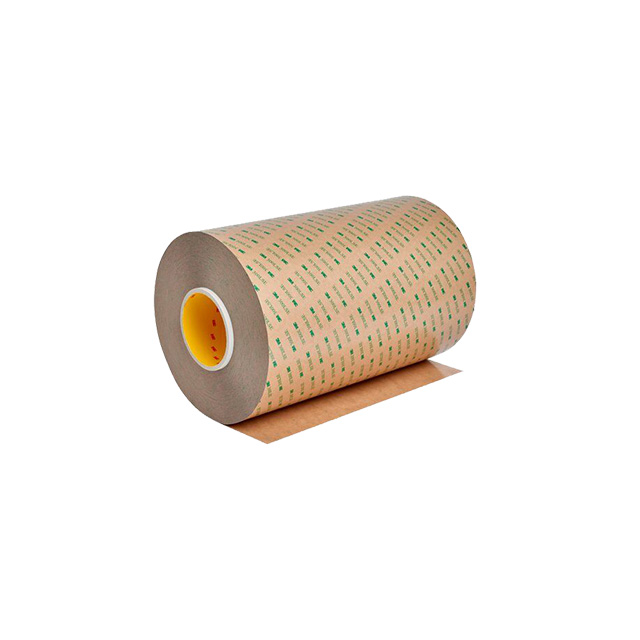

9472LE-12-60

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 12"X60YDS

Deep-Dive with AI

Search across all available documentation for this part.

9472LE-12-60

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 12"X60YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9472LE-12-60

Adhesive	Acrylic, 300LSE
Backing, Carrier	Polycoated Kraft Liner
Color	Clear
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range [Max]	149 °C, 300 °F
Temperature Range [Min]	-40 °F
Thickness	0.0094 in
Thickness	9.4 mils
Thickness	0.239 mm
Thickness - Adhesive	0.0052 "
Thickness - Adhesive	5.2 mils
Thickness - Adhesive	0.132 mm
Thickness - Backing, Carrier	0.107 mm
Thickness - Backing, Carrier	0.0042 in
Thickness - Backing, Carrier	4.2 mils
Usage	Bonding
Width [x]	304.8 mm
Width [x]	12 in

9472LE Series

...

Part	Shelf Life	Usage	Thickness	Thickness	Thickness	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length	Length	Length	Backing, Carrier	Adhesive	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Color	Width	Width	Width	Temperature Range [Min]	Temperature Range [Max]	Width	Width [x]	Width [x]	Width [y]	Width [y]
3M (TC) 3M 9472LE 0.5" X 0.75"-250	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	0.75 in	19.05 mm	0.75 "	Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear	0.5 in	12.7 mm	0.5 in	-40 °F	149 °C 300 °F
3M (TC) 9472LE-1.5-1.25(100)	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	1.25 in	31.75 mm		Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear		38.1 mm	1.5 "	-40 °F	149 °C 300 °F	1 1/2
3M (TC) 3M 9472LE 4" X 8.625"-25	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	8.63 in	219.08 mm		Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F		4 "	101.6 mm
3M (TC) 3M 9472LE 0.71" X 60YD	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	180 ft	55 m	60 yds	Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F		0.71 in	18 mm
3M (TC) 3M 9472LE 2" X 8.625"-25	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	8.63 in	219.08 mm		Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F				2 "	50.8 mm
3M (TC) 9472LE-0.75-60	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	180 ft	55 m	60 yds	Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear	19.05 mm	0.75 in	0.75 in	-40 °F	149 °C 300 °F
3M (TC) 3M 9472LE 3" X 10.5"-25	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	10.5 in	266.7 mm		Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F		3 in	76.2 mm
3M (TC) 9472LE-12-60	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	180 ft	55 m	60 yds	Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F		12 in	304.8 mm
3M (TC) 3M 9472LE 9" X 60YD	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	180 ft	55 m	60 yds	Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear				-40 °F	149 °C 300 °F		9 in	228.6 mm
3M (TC) 3M 9472LE 0.5" X 7"-250	18 Months	Bonding	0.0094 in	9.4 mils	0.239 mm	70 °F	21 °C	7 in	177.8 mm		Polycoated Kraft Liner	Acrylic 300LSE	Date of Manufacture	0.0052 "	5.2 mils	0.132 mm	0.107 mm	0.0042 in	4.2 mils	Adhesive Transfer	Clear	0.5 in	12.7 mm	0.5 in	-40 °F	149 °C 300 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 793.13
		10	$ 740.26

Description

General part information

9472LE Series

Adhesive Transfer Tape Acrylic, 300LSE Adhesive Clear 12.00" (304.80mm) X 180' (55.0m) 60 yds

Documents

Technical documentation and resources

No documents available
