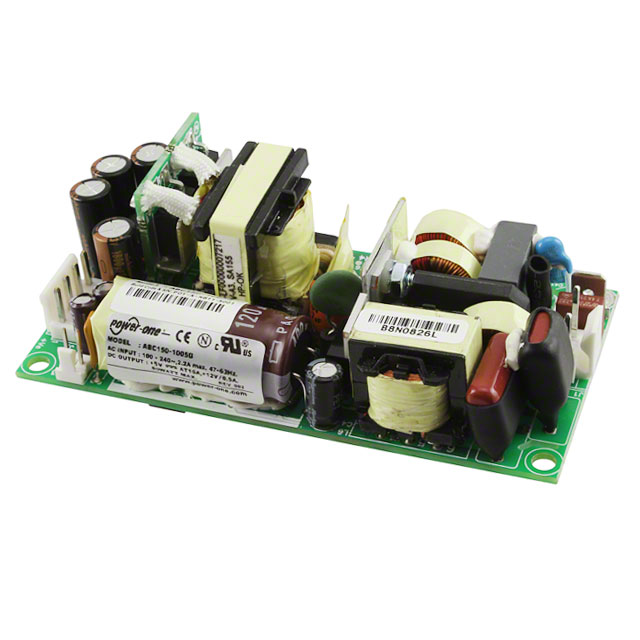

ABC150-1005G

Active

Bel Power Solutions

AC/DC CONVERTER 5V 110/150W

Deep-Dive with AI

Search across all available documentation for this part.

ABC150-1005G

Active

Bel Power Solutions

AC/DC CONVERTER 5V 110/150W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ABC150 Series

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ABC150-1005G	ABC150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	16 A	2.08 - 16 A
Efficiency	86 %	86 %
Features	Universal Input, DC Input Capable, Adjustable Output, Standby Output	Universal Input, DC Input Capable, Adjustable Output, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	110 W, 150 W	110 - 150 W
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	1.32 in	1.32 in
Size / Dimension [z]	33.6 mm	33.6 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4.242 kV	4.242 kV
Voltage - Output 1	5 V	5 - 48 V

ABC150 Series

AC/DC CONVERTER 24V 110/150W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Applications	Efficiency	Power (Watts)	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Features	Type	Approval Agency	Voltage - Isolation
Bel Power Solutions ABC150-1T24G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	4.17 A	-20 °C	70 °C	24 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1012G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	8.33 A	-20 °C	70 °C	12 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1048G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	2.08 A	-20 °C	70 °C	48 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1005G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	16 A	-20 °C	70 °C	5 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1T05G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	16 A	-20 °C	70 °C	5 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1024G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	4.17 A	-20 °C	70 °C	24 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1T12G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	8.33 A	-20 °C	70 °C	12 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
Bel Power Solutions ABC150-1015G	90 VAC	264 VAC	Chassis Mount	ITE (Commercial)	86 %	110 W, 150 W	6.67 A	-20 °C	70 °C	15 V	2 in	101.6 mm	1.32 in	33.6 mm	50.8 mm	4 in	1	Adjustable Output, DC Input Capable, Standby Output, Universal Input	Open Frame	CE	4.242 kV
