HE-016-F(17-32)
ActiveTE Connectivity AMP Connectors

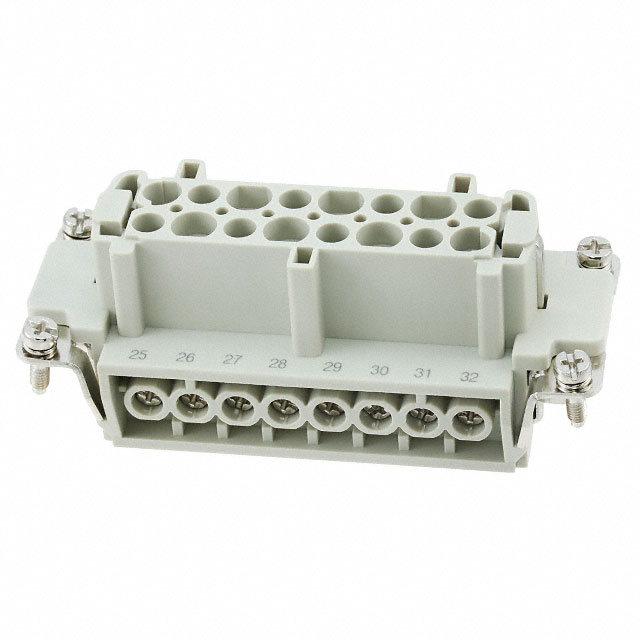

INSERT FEMALE 16POS SCREW
Deep-Dive with AI
Search across all available documentation for this part.
HE-016-F(17-32)
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 16POS SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HE-016-F(17-32) | HE-016 Series |
|---|---|---|
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 16 | 16 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Screw | Tension Clamp, Screw |
| Voltage Rating | 500 V | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.68 | |
| 10 | $ 13.40 | |||
| 25 | $ 13.04 | |||
| 50 | $ 12.40 | |||
| 100 | $ 11.19 | |||
| 250 | $ 11.12 | |||
| 500 | $ 9.69 | |||
| 1000 | $ 9.62 | |||
HE-016 Series
INSERT MALE 16POS CLAMP
| Part | Gender | Voltage Rating | Material Flammability Rating | Number of Positions | Current Rating (Amps) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HE-016-MS(17-32) | Male | 500 V | UL94 V-0 | 16 | 16 A | Tension Clamp | 125 °C | -40 °C | Polycarbonate (PC) |
TE Connectivity AMP Connectors HE-016-F | Female | 500 V | UL94 V-0 | 16 | 16 A | Screw | 125 °C | -40 °C | Polycarbonate (PC) |
TE Connectivity AMP Connectors HE-016-F(17-32) | Female | 500 V | UL94 V-0 | 16 | 16 A | Screw | 125 °C | -40 °C | Polycarbonate (PC) |
TE Connectivity AMP Connectors HE-016-MS | Male | 500 V | UL94 V-0 | 16 | 16 A | Tension Clamp | 125 °C | -40 °C | Polycarbonate (PC) |
Description
General part information
HE-016 Series
Female Insert 16 Position Screw
Documents
Technical documentation and resources
No documents available
