341-030-524-208
ActiveEDAC Inc.

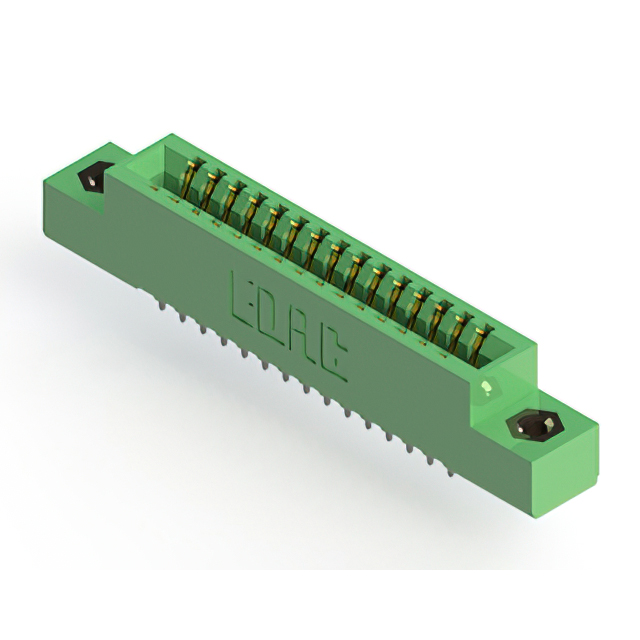

CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-030-524-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-030-524-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
341-030 Series
| Part | Termination | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Type | Color | Card Type | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination Rows | Read Out | Mounting Type | Gender | Contact Finish | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | Semi Bellows | Green | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | 1 | Single | Through Hole | Female | Gold | 30 | |||
EDAC Inc. | Solder Eyelet(s) | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | 2 | Dual | Board Edge Straddle Mount | Female | Gold | 30 | Card Extender | ||
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | -40 °C | 105 ░C | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Semi Bellows | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | 2 | Dual | Through Hole | Female | Gold | 30 | 0.116 in | 2.95 mm | |
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Semi Bellows | Green | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | 1 | Single | Through Hole | Female | Gold | 30 | ||||
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | 2 | Dual | Through Hole | Female | Gold | 30 | |||
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2 | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening | Semi Bellows | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | 2 | Dual | Through Hole | Female | Gold | 30 | |||
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Semi Bellows | Green | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | 1 | Single | Through Hole | Female | Gold | 30 | 0.116 in | 2.95 mm | |
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Floating Bobbin Flush Mount | Semi Bellows | Green | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | 1 | Single | Through Hole | Female | Gold | 30 | 0.116 in | 2.95 mm | |
EDAC Inc. | Solder | Polyester Thermoplastic | -40 °C | 105 ░C | Copper Alloy | 2 | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Non Specified - Dual Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | 2 | Dual | Board Edge Straddle Mount | Female | Gold | 30 | Card Extender | 0.128 " | 3.25 mm |
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | -40 °C | 105 ░C | Copper Alloy | 1 | 10 Áin | 0.25 Ám | Flush Mount Top Opening Unthreaded | Semi Bellows | Green | Non Specified - Single Edge | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | 1 | Single | Through Hole | Female | Gold | 30 | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 13.33 | |
Description
General part information
341-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
Documents
Technical documentation and resources
