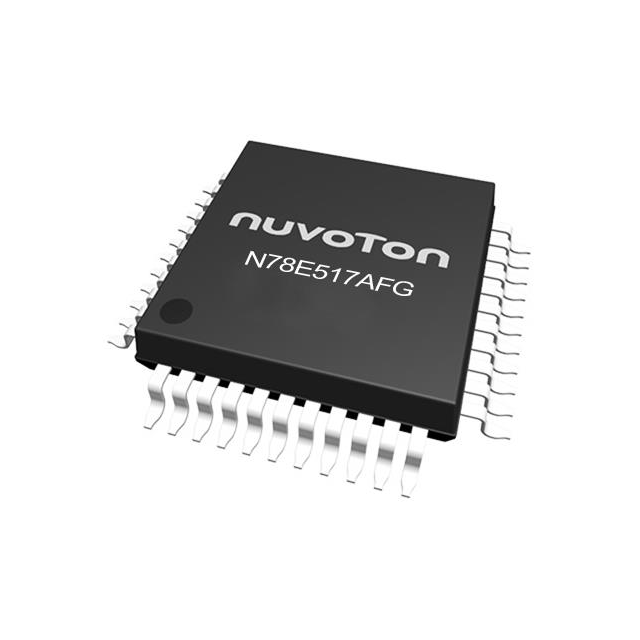

N78E517AFG

Obsolete

Nuvoton Technology Corporation

IC MCU 8BIT 64KB FLASH 44QFP

Search across all available documentation for this part.

Obsolete

Nuvoton Technology Corporation

IC MCU 8BIT 64KB FLASH 44QFP

Technical Specifications

Parameters and characteristics for this part

Specification	N78E517AFG

Connectivity	UART/USART, EBI/EMI, SPI
Core Processor	8051
Core Size	8-Bit
Mounting Type	Surface Mount
Number of I/O	36
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	44-BQFP
Peripherals	PWM, LVD, WDT, Brown-out Detect/Reset, POR
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	1.25 K
Speed	40 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.4 V

Part	Program Memory Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Peripherals	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	RAM Size	Connectivity	Number of I/O	Package / Case	Core Processor	Oscillator Type	Speed	Mounting Type
Nuvoton Technology Corporation N78E517AFG	64 KB	2.4 V	5.5 V	Brown-out Detect/Reset LVD POR PWM WDT	8-Bit	85 °C	-40 °C	FLASH	1.25 K	EBI/EMI SPI UART/USART	36	44-BQFP	8051	Internal	40 MHz	Surface Mount
Nuvoton Technology Corporation N78E517APG	64 KB	2.4 V	5.5 V	Brown-out Detect/Reset LVD POR PWM WDT	8-Bit	85 °C	-40 °C	FLASH	1.25 K	EBI/EMI SPI UART/USART	36	44-LCC (J-Lead)	8051	Internal	40 MHz	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8051 N78 Microcontroller IC 8-Bit 40MHz 64KB (64K x 8) FLASH
