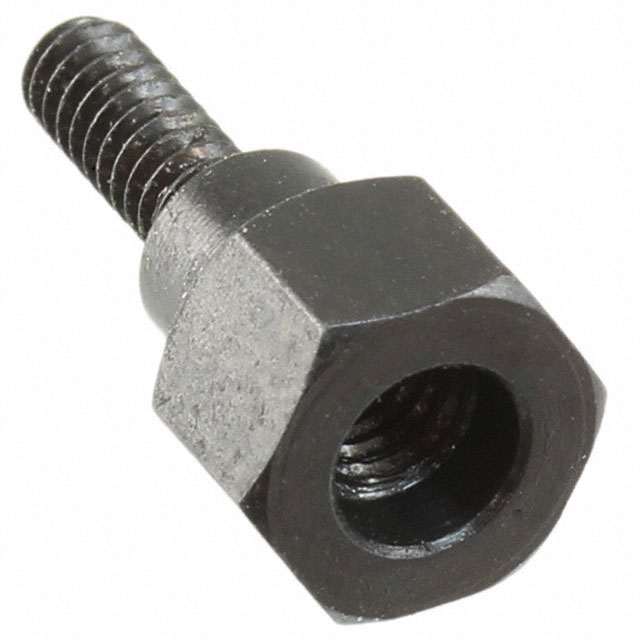

Specification	552634-4

Accessory Type	Jackscrew Socket
For Use With/Related Products	CHAMP D-Sub Edge Mount PCB Connectors
Length - Below Head	0.457 in
Length - Threaded Portion Below Head	0.315 in
Thread Size	4-40 Screw, M3.5 Socket

552634 Series

Part	Accessory Type	Length - Threaded Portion Below Head	Length - Below Head	Thread Size	For Use With/Related Products	Features
TE Connectivity AMP Connectors 552634-4	Jackscrew Socket	0.315 in	0.457 in	4-40 Screw M3.5 Socket	CHAMP D-Sub Edge Mount PCB Connectors
TE Connectivity AMP Connectors 552634-9	Jackscrew Socket	0.319 in	0.496 in	4-40 Screw M3.5 Socket	CHAMP D-Sub Edge Mount PCB Connectors	Shielded
TE Connectivity AMP Connectors 552634-7	Jackscrew Socket	0.319 in	0.496 in	4-40 Screw M3.5 Socket	CHAMP D-Sub Edge Mount PCB Connectors	Shielded
