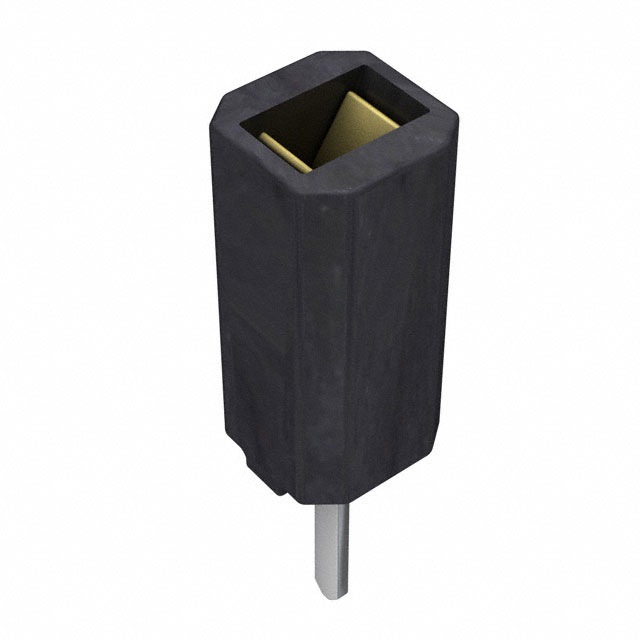

SSA-101-S-G

Active

Samtec Inc.

CONN RCPT 1POS GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 1POS GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	SSA-101-S-G

Connector Type	Breakaway, Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	3.84 mm
Contact Length - Post	0.151 in
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.85 mm
Insulation Height	0.23 in
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder
Voltage Rating	1000 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Insulation Color	Insulation Height	Insulation Height	Mounting Type	Contact Finish - Mating	Insulation Material	Contact Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Termination	Fastening Type	Connector Type	Contact Length - Post	Contact Length - Post
Samtec Inc. SSA-101-W-G-RA	-55 °C	125 °C	1	All	10 çin	0.25 çm	Phosphor Bronze	1	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	Polyester Polyethylene Terephthalate (PET)	Female Socket	UL94 V-0	14.61 mm	0.575 in	1000 VDC	Wire Wrap	Push-Pull	Breakaway Receptacle
Samtec Inc. SSA-101-S-T	-55 °C	105 ░C	1	All			Phosphor Bronze	1	Black	0.23 in	5.85 mm	Through Hole		Polyester Polyethylene Terephthalate (PET)	Female Socket	UL94 V-0			1000 VDC	Solder	Push-Pull	Breakaway Receptacle	3.84 mm	0.151 in
Samtec Inc. SSA-101-S-G	-55 °C	125 °C	1	All	10 çin	0.25 çm	Phosphor Bronze	1	Black	0.23 in	5.85 mm	Through Hole	Gold	Polyester Polyethylene Terephthalate (PET)	Female Socket	UL94 V-0			1000 VDC	Solder	Push-Pull	Breakaway Receptacle	3.84 mm	0.151 in
Samtec Inc. SSA-101-W-T	-55 °C	105 ░C	1	All			Phosphor Bronze	1	Black	0.23 in	5.85 mm	Through Hole		Polyester Polyethylene Terephthalate (PET)	Female Socket	UL94 V-0			1000 VDC	Wire Wrap	Push-Pull	Breakaway Receptacle	16.66 mm	0.656 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Receptacle, Breakaway Connector Through Hole Gold
