204-0003-01

Active

Schmartboard, Inc.

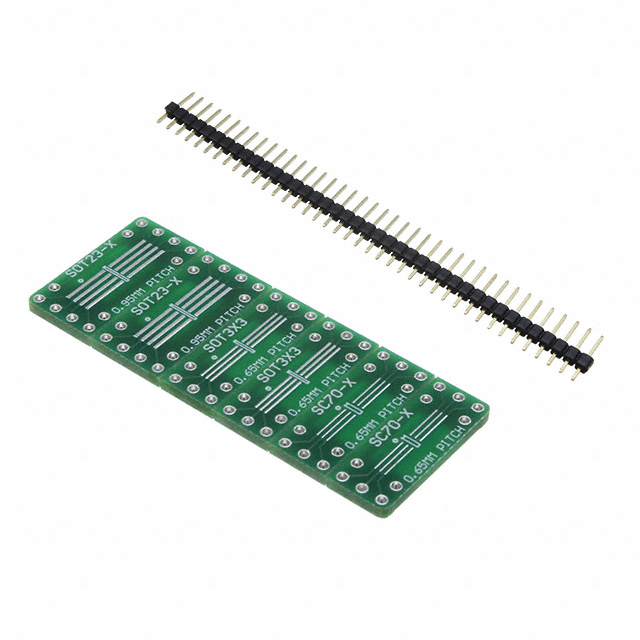

SCHMARTBOARDEZ SOT 23 & SC70 SMT

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SCHMARTBOARDEZ SOT 23 & SC70 SMT

Technical Specifications

Parameters and characteristics commom to parts in this series

SCHMARTBOARDEZ SOT 23 & SC70 SMT

Part	Proto Board Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package Accepted	Number of Positions	Pitch
Schmartboard, Inc. 204-0003-01	SMD to DIP	50.55 mm	20.07 mm	0.79 "	1.99 "	SC70, SOT
Schmartboard, Inc. 204-0003-31	SMD to DIP	50.55 mm	20.07 mm	0.79 "	1.99 "	SOT-23	6, 8	0.026 in, 0.037 in, 0.65 mm, 0.95 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.00

General part information

SCHMARTBOARDEZ SOT 23 & SC70 SMT
