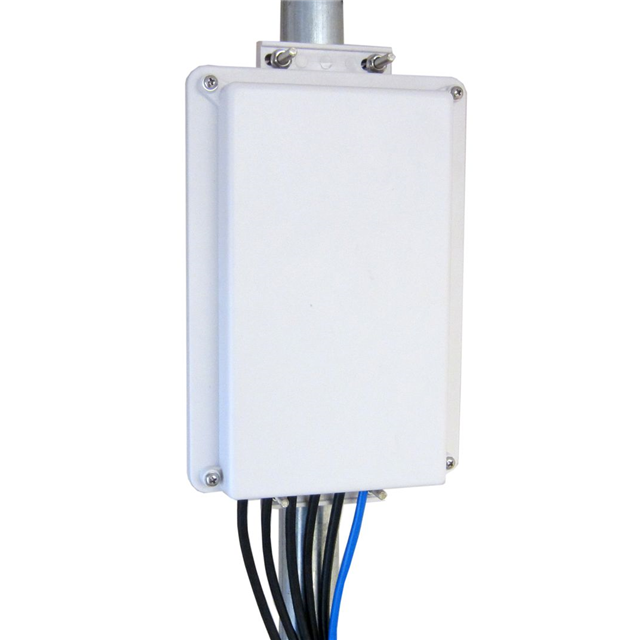

TP-SW8NC-OUT24

Obsolete

Tycon Systems Inc.

OUTDOOR 8 PORT 10/100 24VDC PASS

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

OUTDOOR 8 PORT 10/100 24VDC PASS

Technical Specifications

Parameters and characteristics commom to parts in this series

OUTDOOR 8 PORT 10/100 24VDC PASS

Part	Output Connector	Type	Voltage - Output	Input Connector	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Ports	Features	Data Rate [Min]	Data Rate [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts) - Per Port	Compliance	Mounting Type
Tycon Systems Inc. TP-SW8NC-OUT24	RJ45 (Data, Power)	Passive Injector	24 V	RJ45 (Data, Power)	85 °C	-40 °C	5 A	63.5 mm	7 ", 177.8 mm	11.5 ", 292.1 mm	8	OCP, OTP, OVP	10 Mbps	100 Mbps	57 V	12 V	120 W	IEEE802.3af, IEEE802.3at	Desktop
Tycon Systems Inc. TP-SW8NC-OUT48	RJ45 (Data, Power)	Passive Injector	48 V	RJ45 (Data, Power)	85 °C	-40 °C	2.5 A	63.5 mm	7 ", 177.8 mm	11.5 ", 292.1 mm	8	OCP, OTP, OVP	10 Mbps	100 Mbps	57 V	12 V	120 W	IEEE802.3af, IEEE802.3at	Desktop

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V Power Over Ethernet (POE) 8 Port Passive Injector 10/100 Mbps Data Rate
