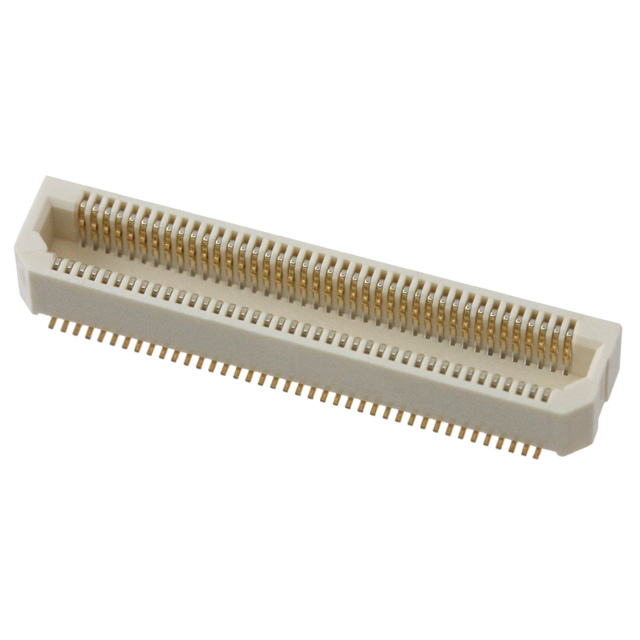

AXK5SA3277YG

Obsolete

Panasonic Electric Works

CONN SOCKET 130POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 130POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK5SA3277YG

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	6.5 mm, 4.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	130
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Number of Positions	Features	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Mounting Type
Panasonic Electric Works AXK5SA3277YG	2	130	Board Guide	0.5 mm	0.02 in	Gold	Socket Center Strip Contacts	3.55 mm	0.14 in	4.5 mm 5.5 mm 6.5 mm	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

130 Position Connector Socket, Center Strip Contacts Surface Mount Gold
