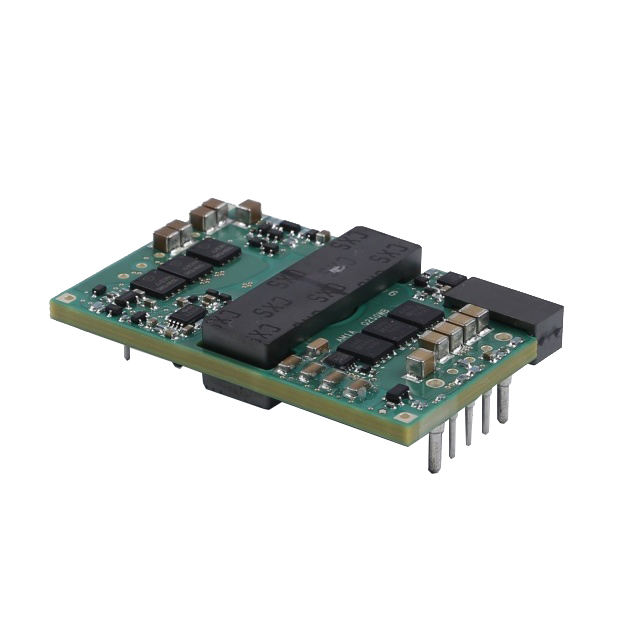

QPS3150N013N25W

Active

NetPower

DC DC CONVERTER 15V 195W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 15V 195W

Technical Specifications

Parameters and characteristics for this part

Specification	QPS3150N013N25W

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	13 A
Efficiency	93.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Size / Dimension [x]	58.2 mm
Size / Dimension [x]	2.29 in
Size / Dimension [y]	37.1 mm
Size / Dimension [y]	1.46 in
Size / Dimension [z]	10.1 mm
Size / Dimension [z]	0.4 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	15 V

DC DC CONVERTER 15V 195W

Part	Efficiency	Voltage - Input (Max) [Max]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Applications	Voltage - Isolation	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Control Features	Features	Current - Output (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
NetPower QPS3150N013N25W	93.5 %	75 V	Quarter Brick	58.2 mm	2.29 in	37.1 mm	10.1 mm	0.4 "	1.46 in	1	ITE (Commercial)	2250 VDC	Through Hole	18 V	15 V	Isolated Module	Active Low, Enable	Adjustable Output, Remote On/Off, Remote Sense	13 A	Quarter Brick	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 82.50

General part information

Isolated Module DC DC Converter 1 Output 15V 13A 18V - 75V Input
