| Actuator Length | - | 8.1 - 22.35 mm |
| Actuator Marking | No Marking | No Marking, Varies by Cap |

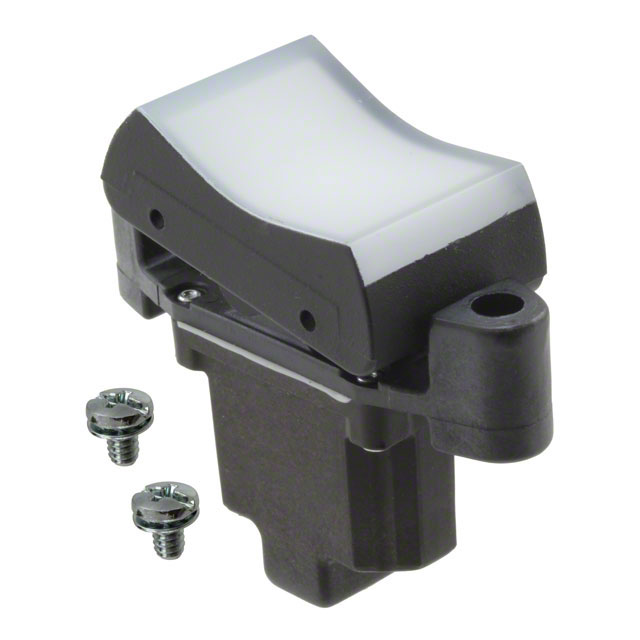

| Actuator Type | Concave (Curved) | Standard Round, Round (Pin Plunger), Concave (Curved), Push-Pull Plunger, Overtravel Plunger, Side Roller Plunger, Side Rotary, Adjustable Roller, Actuator Arm, Cap Required, Side Rotary - No Lever, Adjustable Plunger, Roller, Lever, Side Plunger, Adjustable Side Plunger, Cross Roller Plunger, Rod, Spring, Roller Plunger, Side Rotary, Lever, Straight, Top Rotary - No Lever, Simulated Roller |
| Approval Agency | CE, CSA, UKCA, UL | CE, CSA, UKCA, UL |
| Bushing Thread | - | 15/32-32, 1/4-40 |
| Circuit | SPST-NO | 6PDT, 4PDT, SPDT, 3PDT, SPDT (DB/DM), SPDT x 2, DPST, DPDT (DB/DM), DPDT, SPST-NO, DPST-NO/NC, DPDT x 2, SPDT x 4, DPST-NC, DPST-NO, Open Collector, Digital, SPST |
| Color - Actuator/Cap | White | Clear, White |
| Current Rating (Amps) | 10 A | 1 - 800 A |
| Differential Travel | - | 0.008 - 4 mm |
| Differential Travel | - | 0.0003 - 40 in |
| Electrical Life | - | 6000 - 50000 Cycles |
| Features | Sealed | Sealed, Status Indicator, Sequence Action, Explosion Proof, Gravity Return, Back Mounted, Steel Roller, Center Neutral, Steel Plunger |
| Features | - | 6 ft |
| Illumination | - | Non-Illuminated |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof, IP66, Waterproof |
| Mechanical Life | - | 80000 - 20000000 Cycles |
| Mounting Type | Panel Mount, Flange | Panel Mount, Snap-In, Flange, Chassis Mount |
| Operating Force | - | 0.68 - 2720 gf |
| Operating Force | - | 113 - 2722 gf |
| Operating Force | - | 227 - 5443 gf |
| Operating Position | - | 0.355 - 20 in |
| Operating Position | - | 9 mm |
| Operating Position | - | 5.2 - 47.2 mm |
| Operating Position | - | 0.203 - 1.859 " |
| Operating Temperature | - | -10 °C |
| Operating Temperature | - | 158 °F |
| Operating Temperature [Max] | 71 °C | 70 - 260 °C |
| Operating Temperature [Min] | -54 °C | -184 - -1 °C |
| Overtravel | - | 0.003 - 110 in |
| Overtravel | - | 0.076 - 6.35 mm |
| Panel Cutout Dimensions | - | 6.6 - 12.4 mm |
| Panel Cutout Dimensions [x] | 38.4 mm | 38.4 mm |
| Panel Cutout Dimensions [y] | 23.9 mm | 23.9 mm |
| Pretravel | - | 0.012 - 65 in |
| Pretravel | - | 0.125 - 6.35 mm |
| Pretravel | - | 3.2 mm |
| Release Force | - | 8.64 - 2268 gf |
| Release Force | - | 113 gf |
| Release Force | - | 340 gf |
| Switch Function | Off-Mom | On-On, On-Mom, Mom-On-Mom, On-Off, Mom-Off-Mom, Off-Mom, On-Off-On, On-Off-Mom |
| Termination Style | Screw Terminal | Solder Lug, Quick Connect - 0.187" (4.7mm), Screw Terminal, Plug In, Wire Leads, Solder Turret, Cable Leads, Quick Connect - 0.058 in (Round), Quick Connect - 0.250" (6.3mm), Connector |
| Voltage Rating - AC | 125 V | 115 - 250 V |
| Voltage Rating - DC | - | 24 - 125 V |
