1915-3-300-21

Active

Kendall Howard

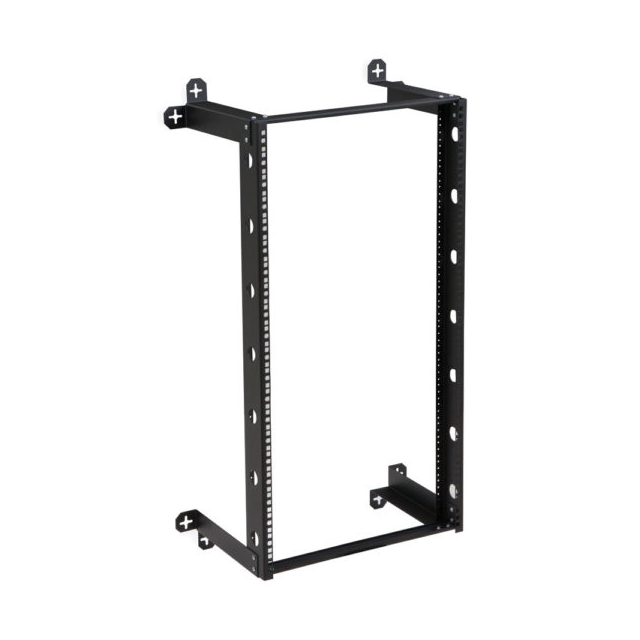

21U V-LINE FIXED WALL RACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet V Line Wall Mount Rack Instr

1915-3-300-21

Active

Kendall Howard

21U V-LINE FIXED WALL RACK

Deep-Dive with AI

DocumentsDatasheet V Line Wall Mount Rack Instr

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 169.99
		2	$ 167.99
		4	$ 165.99

Description

General part information

1915-3 Series

Cold Roll Steel (CRS) Open Rack Open Rack, Double Frame 21.500" L x 12.000" W x 39.880" H (546.10mm x 304.80mm x 1012.95mm) Black

Documents

Technical documentation and resources

Datasheet

V Line Wall Mount Rack Instr

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1915-3-300-21	1915-3 Series

Color	Black	Black
Dimensions - Overall	-	790.45 mm
Dimensions - Overall	-	304.8 mm
Dimensions - Overall [x]	21.5 "	21.5 - 22.22 "
Dimensions - Overall [x]	546.1 mm	546.1 - 564.39 mm
Dimensions - Overall [y]	12 in	12 - 20.65 in
Dimensions - Overall [y]	304.8 mm	304.8 - 524.51 mm
Dimensions - Overall [z]	39.88 in	17.23 - 39.88 "
Dimensions - Overall [z]	1012.95 mm	437.64 - 1012.95 mm
Door	Doorless	Doorless, Acrylic
Material	Cold Roll Steel (CRS)	Cold Roll Steel (CRS)
Mounting Rails	Two Pair	Two Pair, One Pair
Number of Units	21 U	12 - 21 U
Number of Units	-	8U
Style	Open Rack, Double Frame	Open Rack, Double Frame, Bottom, Enclosed, Sides, Front, Top, Single Frame, Open Rack
Type	Open Rack	Open Rack, Cabinet Rack
Ventilation	Non-Vented	Non-Vented, Vented
Weight	6.2 kg	4.7 - 20 kg
Weight	13.8 lbs	10.3 - 44.3 lbs

1915-3 Series

16U 18" V-LINE FIXED WALL RACK

Part	Type	Mounting Rails	Door	Ventilation	Weight	Weight	Dimensions - Overall [z]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Material	Color	Style	Number of Units	Dimensions - Overall [z]	Dimensions - Overall [y]	Number of Units
Kendall Howard 1915-3-301-16	Open Rack	Two Pair	Doorless	Non-Vented	6.1 kg	13.5 lbs	790.7 mm	31.13 "	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	16 U
Kendall Howard 1915-3-301-21	Open Rack	Two Pair	Doorless	Non-Vented	7 kg	15.5 lbs	1012.95 mm	39.88 in	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	21 U
Kendall Howard 1915-3-200-12	Cabinet Rack	Two Pair	Doorless	Vented	17 kg	37.5 lbs							Cold Roll Steel (CRS)	Black	Bottom, Enclosed, Front, Sides, Top	12 U
Kendall Howard 1915-3-300-16	Open Rack	Two Pair	Doorless	Non-Vented	5.4 kg	12 lbs		31.12 "	21.5 "	12 in		546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	16 U	790.45 mm	304.8 mm
Kendall Howard 1915-3-300-12	Open Rack	Two Pair	Doorless	Non-Vented	4.7 kg	10.3 lbs	612.9 mm	24.13 in	21.5 "	12 in	304.8 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	12 U
Kendall Howard 1915-3-100-08	Cabinet Rack	One Pair	Acrylic	Vented	20 kg	44.3 lbs	437.64 mm	17.23 in	22.22 in	20.65 in	524.51 mm	564.39 mm	Cold Roll Steel (CRS)	Black	Bottom, Enclosed, Front, Sides, Top				8U
Kendall Howard 1915-3-300-21	Open Rack	Two Pair	Doorless	Non-Vented	6.2 kg	13.8 lbs	1012.95 mm	39.88 in	21.5 "	12 in	304.8 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	21 U
Kendall Howard 1915-3-301-12	Open Rack	Two Pair	Doorless	Non-Vented	5.4 kg	12 lbs	612.9 mm	24.13 in	21.5 "	18 in	457.2 mm	546.1 mm	Cold Roll Steel (CRS)	Black	Open Rack, Double Frame	12 U
Kendall Howard 1915-3-001-08	Open Rack	Two Pair	Doorless	Non-Vented	5 kg	11.1 lbs							Cold Roll Steel (CRS)	Black	Open Rack, Single Frame				8U
