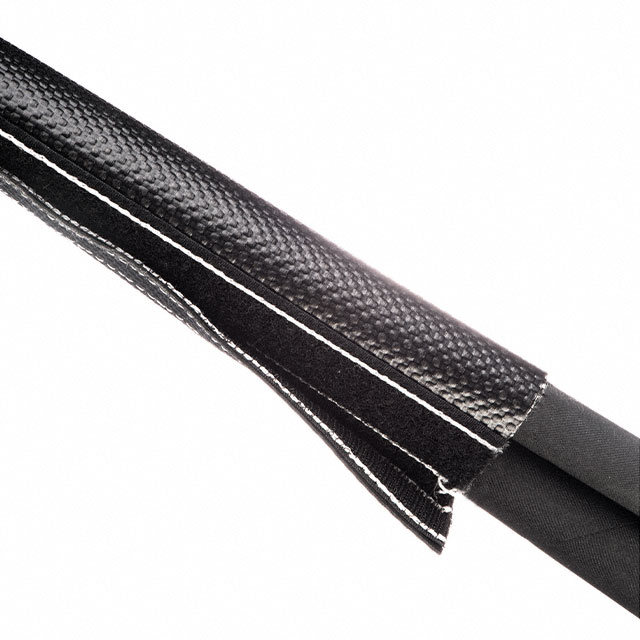

DWG1.38BK25

Active

Techflex

SELF WRAP 1.375" X 25' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1.375" X 25' BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 294.33

General part information

Self Wrap X 25.00' (7.62m) Black

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DWG1.38BK25	DWG1 Series

Abrasion Protection	Puncture Resistant, Abrasion Resistant, Tear Resistant	Puncture Resistant, Abrasion Resistant, Tear Resistant
Color	Black	Black
Diameter - Inside, Non-Expanded	-	44.45 mm
Diameter - Inside, Non-Expanded [diameter]	1.375 in	1.375 in
Diameter - Inside, Non-Expanded [diameter]	34.93 mm	1.75 - 34.93 mm
Features	Hook and Loop Closure Strip, Clean Cut	Hook and Loop Closure Strip, Clean Cut
Length [x]	25 ft	25 - 75 ft
Length [x]	7.62 m	7.62 - 22.86 m
Liquid Protection	Petroleum Resistant, Water Resistant	Petroleum Resistant, Water Resistant
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-51 °C	-51 °C
Type	Self Wrap	Self Wrap
Type Attributes	Split Flexible Tube	Split Flexible Tube
Wall Thickness	0.05 in	0.05 in
Wall Thickness	1.27 mm	1.27 mm

SELF WRAP 1.375" X 25' BLACK

Part	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Type Attributes	Wall Thickness	Wall Thickness	Color	Abrasion Protection	Liquid Protection	Diameter - Inside, Non-Expanded [diameter]
Techflex DWG1.38BK25	Clean Cut, Hook and Loop Closure Strip	1.375 in	34.93 mm	Self Wrap	121 °C	-51 °C	25 ft	7.62 m	Split Flexible Tube	0.05 in	1.27 mm	Black	Abrasion Resistant, Puncture Resistant, Tear Resistant	Petroleum Resistant, Water Resistant
Techflex DWG1.75BK75	Clean Cut, Hook and Loop Closure Strip		1.75 in	Self Wrap	121 °C	-51 °C	75 ft	22.86 m	Split Flexible Tube	0.05 in	1.27 mm	Black	Abrasion Resistant, Puncture Resistant, Tear Resistant	Petroleum Resistant, Water Resistant	44.45 mm
