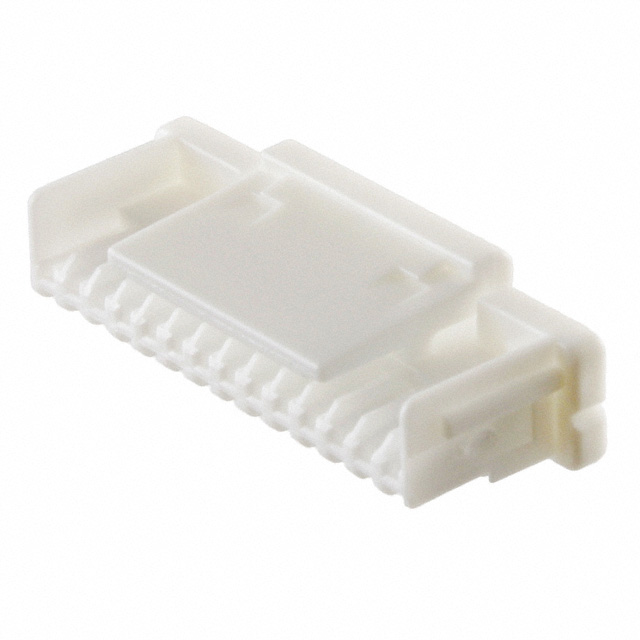

NSHR-14V-S

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 1.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 14POS 1.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	NSHR-14V-S

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm

Part	Contact Termination	Color	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Note	Insulation Material	Number of Positions	Connector Type	Contact Type	Number of Rows
JST Sales America Inc. NSHR-14V-S	Crimp	Natural	0.039 in	1 mm	-25 °C	85 °C	Latch Lock	Free Hanging (In-Line)	Contacts Not Included	Polybutylene Terephthalate (PBT)	14	Receptacle	Female Socket	1
JST Sales America Inc. NSHR-14V-K	Crimp	Black	0.039 in	1 mm	-25 °C	85 °C	Latch Lock	Free Hanging (In-Line)	Contacts Not Included	Polybutylene Terephthalate (PBT)	14	Receptacle	Female Socket	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Rectangular Connectors - Housings Receptacle Natural 0.039" (1.00mm)
