917785-1

Active

TE Connectivity AMP Connectors

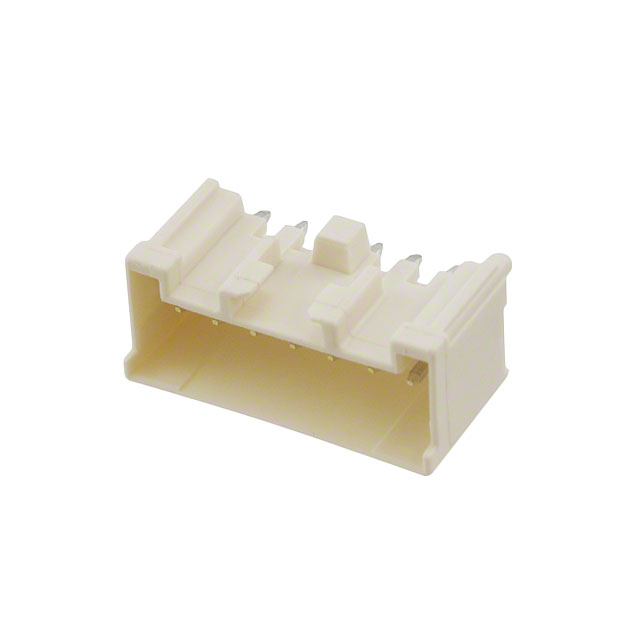

CONN HEADER VERT 7POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 7POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917785-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.41 in
Overall Contact Length	10.41 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 7POS 2.5MM

Part	Mounting Type	Material Flammability Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Material	Number of Positions Loaded	Contact Shape	Connector Type	Number of Rows	Shrouding	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Termination	Contact Finish - Post	Insulation Material	Applications	Fastening Type	Contact Length - Post	Contact Length - Post [x]	Number of Positions	Features	Insulation Height	Insulation Height	Contact Type	Voltage Rating
TE Connectivity AMP Connectors 917785-1	Through Hole	UL94 V-0	Board to Cable/Wire	-30 ░C	105 ░C	13.7 mm	0.185 in	4.7 mm	Natural	Copper Alloy	All	Square	Header	1	Shrouded - 4 Wall	2.5 mm	0.098 in	0.41 in	10.41 mm	3 A	Kinked Pin, Solder	Tin	Polyamide (PA66), Nylon 6/6, Glass Filled	General Purpose	Latch Holder	3.2 mm	0.126 in	7	Board Guide	9.8 mm	0.386 in	Male Pin	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 7 position 0.098" (2.50mm)
