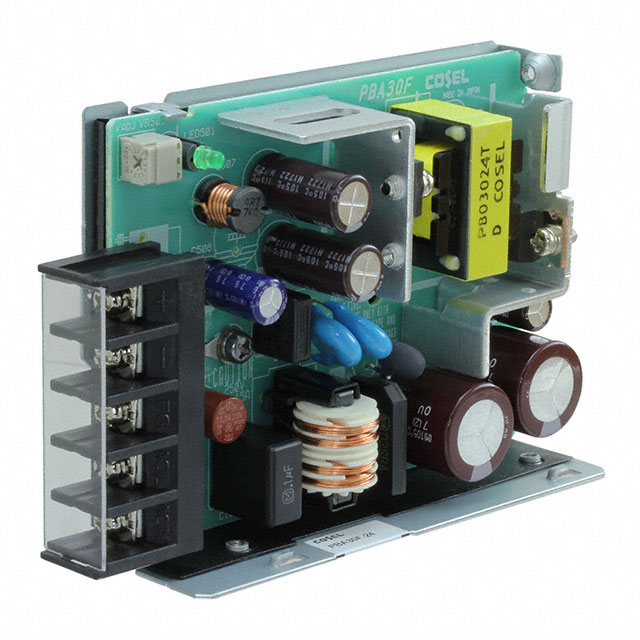

PBA30F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBA30F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBA30F-12

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	2.5 A
Efficiency	78 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	30 W
Type	Open Frame
Voltage - Output 1	12 V

PBA30 Series

...

Part	Voltage - Isolation	Type	Current - Output 1	Efficiency	Voltage - Output 1	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Features	Power (Watts)
Cosel USA, Inc. PBA30F-24-GN	3000 V	Enclosed	1.3 A	81 %	24 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-24-EN	3000 V	Enclosed	1.3 A	81 %	24 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-24-V	3000 V	Open Frame	1.3 A	81 %	24 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-12-CN	3000 V	Enclosed	2.5 A	78 %	12 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-5-CJN	3000 V	Enclosed	6 A	77 %	5 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-24-G	3000 V	Open Frame	1.3 A	81 %	24 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-12-N1	3000 V	Enclosed	2.5 A	78 %	12 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-12		Open Frame	2.5 A	78 %	12 V	1	CE cURus TUV									ITE (Commercial)	Chassis Mount	DC Input Capable Universal Input	30 W
Cosel USA, Inc. PBA30F-48-V	3000 V	Open Frame	650 mA	81 %	48 V	1	CE cURus TUV	78 mm	4.06 "	31 mm	103.1 mm	1.22 "	3.07 in	-10 °C	71 °C	ITE (Commercial)	Chassis Mount
Cosel USA, Inc. PBA30F-15		Open Frame	2 A	81 %	15 V	1	CE cURus TUV									ITE (Commercial)	Chassis Mount	DC Input Capable Universal Input	30 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.79
		5	$ 50.68
		10	$ 49.39
		25	$ 47.74
		50	$ 46.53
		100	$ 46.27

Description

General part information

PBA30 Series

Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
