MH10BCX-BOTTLE
Active3M

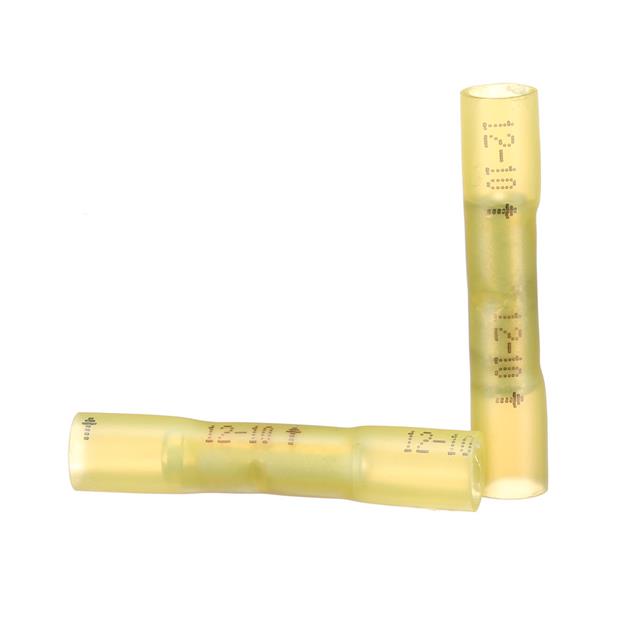

CONN SPLICE 10-12 AWG CRIMP 25PC
Deep-Dive with AI
Search across all available documentation for this part.
MH10BCX-BOTTLE
Active3M
CONN SPLICE 10-12 AWG CRIMP 25PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MH10BCX-BOTTLE | MH10 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | - | Tin |
| Contact Material | - | ETP, Copper |
| Features | - | Brazed Seam |
| Insulation | Fully Insulated Heat Shrink | Insulated with Heat Shrink, Fully Insulated Heat Shrink |
| Length - Overall | - | 25.4 mm |
| Length - Overall | - | 1 - 1.2 in |
| Length - Overall | - | 30.48 mm |
| Length - Ring Center to Termination | - | 0.16 in |
| Length - Ring Center to Termination | - | 4.06 mm |
| Length - Ring Center to Termination | - | 0.3 in |
| Length - Ring Center to Termination | - | 7.62 mm |
| Length - Termination | - | 16.26 mm |
| Length - Termination | - | 0.64 in |
| Length - Termination | - | 16.51 mm |
| Length - Termination | - | 0.65 in |
| Material - Insulation | - | Polyolefin |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Wire Entries | 2 | 2 |
| Stud/Tab Size | - | 8 Stud, 3/8 Stud |
| Stud/Tab Size | - | 0.25 Stud |
| Terminal Type | Butt Splice, Inline, Individual Openings | Snap, Spring, Butt Splice, Inline, Individual Openings, Circular |
| Termination | Crimp | Crimp, Screw |
| Thickness | - | 0.04 in |
| Thickness | - | 1.02 mm |
| Width - Outer Edges | - | 8.13 - 10.92 mm |
| Width - Outer Edges | - | 0.32 - 0.43 in |
| Width - Outer Edges | - | 14.99 mm |
| Width - Outer Edges | - | 0.59 in |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
MH10 Series
CONN SPADE TERM 10-12AWG #8 25PC
| Part | Width - Outer Edges [y] | Width - Outer Edges [y] | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Termination | Features | Insulation | Contact Finish | Length - Termination [custom] | Length - Termination [custom] | Length - Overall | Length - Overall [x] | Material - Insulation [custom] | Mounting Type | Terminal Type | Stud/Tab Size | Wire Gauge [Max] | Wire Gauge [Min] | Color | Contact Material | Number of Wire Entries | Length - Overall [x] | Thickness | Thickness | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size | Length - Ring Center to Termination | Length - Ring Center to Termination | Length - Termination [x] | Length - Termination [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8.13 mm | 0.32 in | 0.16 in | 4.06 mm | Crimp | Brazed Seam | Insulated with Heat Shrink | Tin | 16.26 mm | 0.64 in | 25.4 mm | 1 in | Polyolefin | Free Hanging (In-Line) | Snap, Spring | 8 Stud | 12 AWG | 10 AWG | Yellow | Copper, ETP | ||||||||||||
8.13 mm | 0.32 in | 0.16 in | 4.06 mm | Crimp | Brazed Seam | Insulated with Heat Shrink | Tin | 16.26 mm | 0.64 in | 25.4 mm | 1 in | Polyolefin | Free Hanging (In-Line) | Snap, Spring | 8 Stud | 12 AWG | 10 AWG | Yellow | Copper, ETP | ||||||||||||
Crimp | Fully Insulated Heat Shrink | Butt Splice, Individual Openings, Inline | 12 AWG | 10 AWG | Yellow | 2 | |||||||||||||||||||||||||
Crimp | Brazed Seam | Insulated with Heat Shrink | Tin | 1.2 in | Polyolefin | Free Hanging (In-Line) | Circular | 3/8 Stud | 12 AWG | 10 AWG | Yellow | Copper, ETP | 30.48 mm | 0.04 in | 1.02 mm | 14.99 mm | 0.59 in | ||||||||||||||
Crimp | Brazed Seam | Insulated with Heat Shrink | Tin | 1.2 in | Polyolefin | Free Hanging (In-Line) | Circular | 12 AWG | 10 AWG | Yellow | Copper, ETP | 30.48 mm | 0.04 in | 1.02 mm | 14.99 mm | 0.59 in | 0.25 Stud | ||||||||||||||
10.92 mm | 0.43 " | Screw | Brazed Seam | Insulated with Heat Shrink | Tin | 1.2 in | Polyolefin | Free Hanging (In-Line) | Snap, Spring | 12 AWG | 10 AWG | Yellow | Copper, ETP | 30.48 mm | 0.25 Stud | 0.3 in | 7.62 mm | 16.51 mm | 0.65 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.28 | |
| 10 | $ 69.41 | |||
| 25 | $ 63.12 | |||
| 50 | $ 58.88 | |||
| 100 | $ 55.05 | |||
Description
General part information
MH10 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 10-12 AWG Yellow
