Q-1U05G0005048i

Active

Amphenol Custom Cable

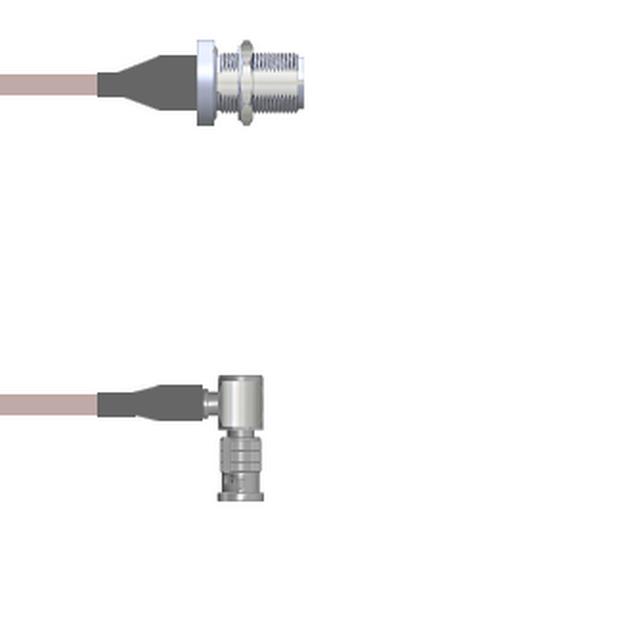

CBL ASSY HDBNC-NTYPE PLG-JACK 4'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U05G0005048i

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLG-JACK 4'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U05G0005048i

1st Connector	HD-BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1200 mm
Length	4 ft
Length	48 in
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-1U05G0 Series

Part	2nd Connector Mounting Feature	Style	2nd Contact Gender	1st Contact Gender	Color	Cable Type	1st Connector	2nd Connector	1st Connector Mounting Type	Features	Frequency - Max [Max]	Length	Length	2nd Connector Mounting Type	Overall Impedance	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1U05G0005.75M	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Copper	RG-316	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	29.53 "	750 mm	Panel Mount	50 Ohms
Amphenol Custom Cable Q-1U05G0003003i	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	3 in	76.2 mm	Panel Mount	50 Ohms
Amphenol Custom Cable Q-1U05G0003024i	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	24 "	609.6 mm	Panel Mount	50 Ohms
Amphenol Custom Cable Q-1U05G0005048i	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Copper	RG-316	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	48 in	1200 mm	Panel Mount	50 Ohms	4 ft
Amphenol Custom Cable Q-1U05G00031.5M	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	59.1 in	1.5 m	Panel Mount	50 Ohms	4.9 ft
Amphenol Custom Cable Q-1U05G0003006i	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	6 in	152.4 mm	Panel Mount	50 Ohms
Amphenol Custom Cable Q-1U05G00030.5M	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	19.69 "	50 cm	Panel Mount	50 Ohms
Amphenol Custom Cable Q-1U05G0003.25M	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz			Panel Mount	50 Ohms		9.843 "	250 mm
Amphenol Custom Cable Q-1U05G0003072i	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	72 in	1.8 m	Panel Mount	50 Ohms	6 ft
Amphenol Custom Cable Q-1U05G0003.75M	Bulkhead - Front Side Nut	HD-BNC to N-Type	Female	Male	Black	RG-174	HD-BNC Plug Right Angle	N-Type Jack	Free Hanging (In-Line)	Shielded	6000 MHz	29.53 "	750 mm	Panel Mount	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 180.19
		25	$ 176.76
		50	$ 173.33
		100	$ 169.90
		250	$ 166.47

Description

General part information

Q-1U05G0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-316 48.0" (1.2m) 4.0'

Documents

Technical documentation and resources

No documents available
