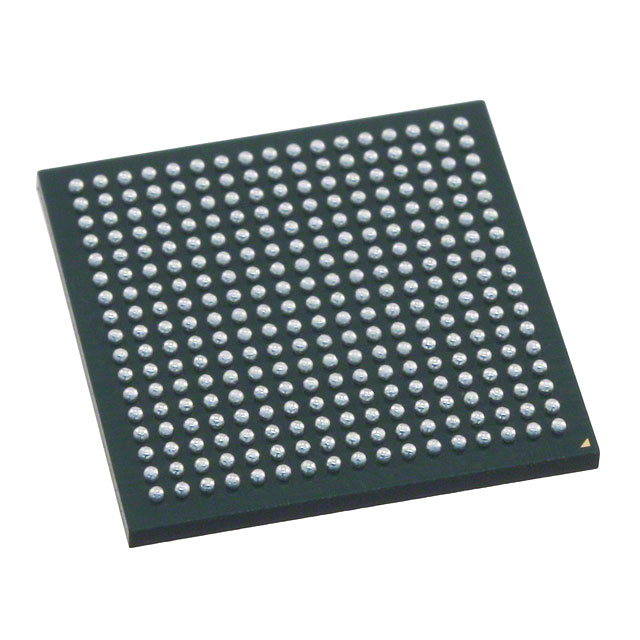

SPEAR310-2

Obsolete

STMicroelectronics

IC MPU SPEAR 333MHZ 289LFBGA

Search across all available documentation for this part.

Obsolete

STMicroelectronics

IC MPU SPEAR 333MHZ 289LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	SPEAR310-2

Additional Interfaces	I2S, UART, IrDA, SPI, Microwire, TDM/E1, I2C, HDLC, MMC/SDIO
Co-Processors/DSP	C3, Security
Core Processor	ARM926EJ-S
Ethernet	5
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	289-LFBGA
RAM Controllers	DDR2, LPDDR
Security Features	Cryptography
Speed	333 MHz
Supplier Device Package	289-LFBGA
USB	USB 2.0 + PHY (3)
Voltage - I/O	3.3 V

Part	Ethernet [Min]	Ethernet [Max]	Ethernet	Voltage - I/O	Core Processor	Package / Case	Graphics Acceleration	RAM Controllers	USB	Speed	Security Features	Co-Processors/DSP	Additional Interfaces	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cores/Bus Width	Mounting Type	Supplier Device Package
STMicroelectronics SPEAR310-2	10 Mbps	100 Mbps	5	3.3 V	ARM926EJ-S	289-LFBGA		DDR2 LPDDR	USB 2.0 + PHY (3)	333 MHz	Cryptography	C3 Security	HDLC I2C I2S IrDA Microwire MMC/SDIO SPI TDM/E1 UART	-40 °C	85 °C	1 Core 32 Bit	Surface Mount	289-LFBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ARM926EJ-S Microprocessor IC SPEAr® 1 Core, 32-Bit 333MHz 289-LFBGA
