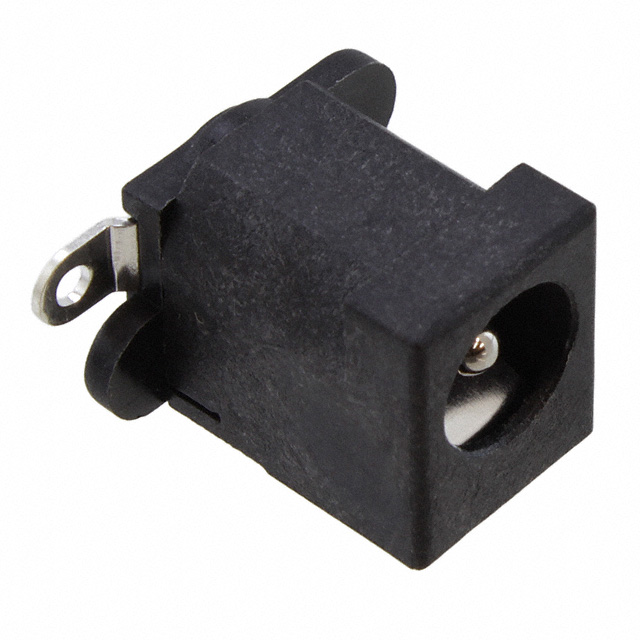

PJ-070AH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-070AH-SMT-TR
ActiveCUI Devices
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-070AH-SMT-TR |
|---|---|
| Actual Diameter | 6.3 mm, 2 mm |
| Actual Diameter [diameter] | 0.079 in, 0.248 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Bronze, Brass |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 5 A |
| Gender | Male |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Industry Recognized Mating Diameter [diameter] | 0.083 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 5.5 mm, 2.1 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 0.327 in |
| Mating Length/Depth | 8.3 mm |
| Mounting Type | Surface Mount |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
