EN2P5M26PK
ActiveSwitchcraft Inc.
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

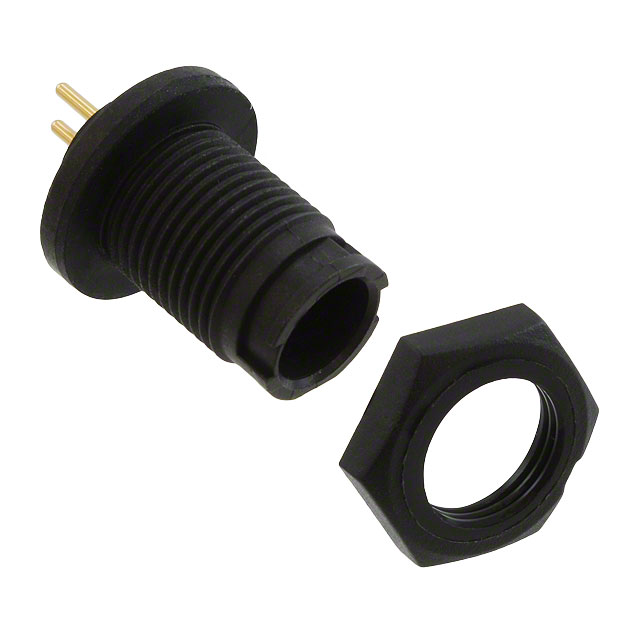

EN2P5M26PK
ActiveSwitchcraft Inc.
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2P5M26PK | EN2P5M Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder, Crimp, Solder Cup |
| Voltage Rating | 125 VAC | 125 VAC |
EN2P5M Series
CONN RCPT MALE 5POS GOLD SOLDER
| Part | Orientation | Insert Material | Termination | Shielding | Mounting Feature | Contact Material | Mounting Type | Fastening Type | Ingress Protection | Primary Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Applications | Color | Connector Type | Contact Finish - Mating | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2P5M26P | Keyed | Elastomer | Solder | Unshielded | Bulkhead - Front Side Nut | Copper Alloy | Panel Mount, Through Hole | Bayonet Lock | IP66, IP67, IP68 | Plastic | 85 °C | -40 °C | UL94 V-0 | Communication Systems, Industrial, Marine, Medical | Black | Male Pins, Receptacle | Gold | 125 VAC |
Switchcraft Inc. EN2P5M26 | Keyed | Elastomer | Crimp, Solder Cup | Unshielded | Bulkhead - Front Side Nut | Copper Alloy | Bayonet Lock | IP66, IP67, IP68 | Plastic | 85 °C | -40 °C | UL94 V-0 | Communication Systems, Industrial, Marine, Medical | Black | Male Pins, Receptacle | Gold | 125 VAC | |
Switchcraft Inc. EN2P5M26PK | Keyed | Elastomer | Solder | Unshielded | Bulkhead - Front Side Nut | Copper Alloy | Panel Mount, Through Hole | Bayonet Lock | IP66, IP67, IP68 | Plastic | 85 °C | -40 °C | UL94 V-0 | Communication Systems, Industrial, Marine, Medical | Black | Male Pins, Receptacle | Gold | 125 VAC |
