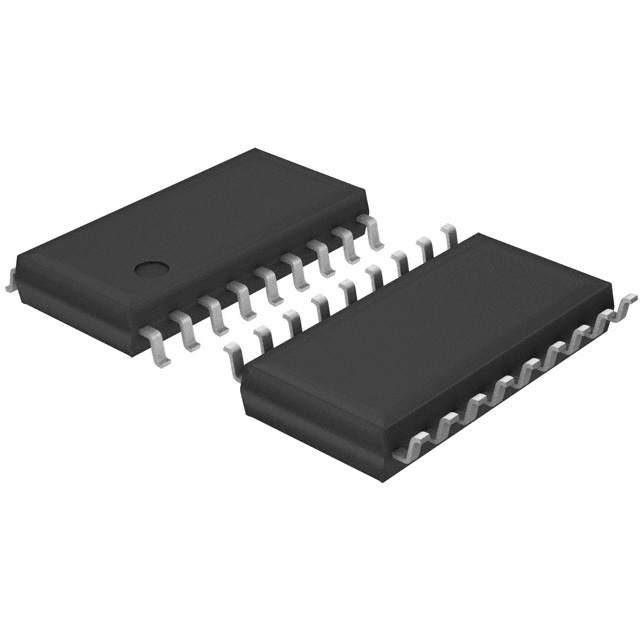

TD62084AFG,N

Obsolete

Toshiba Semiconductor and Storage

IC DRIVER 8/0 18SOP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC DRIVER 8/0 18SOP

Technical Specifications

Parameters and characteristics for this part

Specification	TD62084AFG,N

Mounting Type	Surface Mount
Number of Drivers/Receivers [custom]	0
Number of Drivers/Receivers [custom]	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	18-SOIC
Package / Case [custom]	7 mm
Package / Case [x]	0.276 in
Supplier Device Package	18-SOP
Type	Driver
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	6 V

Part	Number of Drivers/Receivers [custom]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case [x]	Package / Case [custom]	Package / Case	Type	Package / Case [x]	Package / Case [x]
Toshiba Semiconductor and Storage TD62084AFG,N	8	18-SOP	85 °C	-40 °C	Surface Mount	6 V	15 V	0.276 in	7 mm	18-SOIC	Driver
Toshiba Semiconductor and Storage TD62084AFG,N,EL	8	18-SOP	85 °C	-40 °C	Surface Mount	6 V	15 V	0.276 in	7 mm	18-SOIC	Driver
Toshiba Semiconductor and Storage TD62084APG,N	8	18-DIP	85 °C	-40 °C	Through Hole	6 V	15 V			18-DIP	Driver	0.3 in	7.62 mm
Toshiba Semiconductor and Storage TD62084AFNG,N,EL	8	18-SSOP	85 °C	-40 °C	Surface Mount	6 V	15 V				Driver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8/0 Driver 18-SOP

Technical documentation and resources

No documents available
