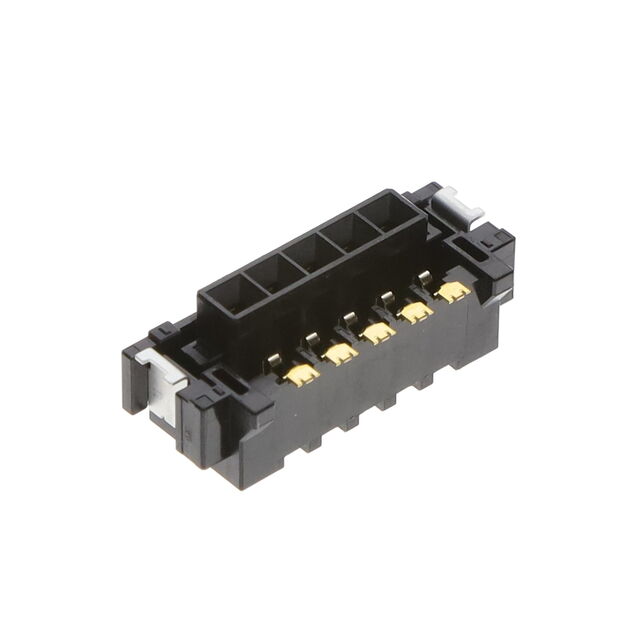

IMSA-18021S-05A-GFN4

Active

IRISO USA Inc.

CONN SOCKET VERT B-TO-B FLOATING

Search across all available documentation for this part.

Active

IRISO USA Inc.

CONN SOCKET VERT B-TO-B FLOATING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMSA-18021S-05A-GFN4	IMSA-1802 Series

Contact Finish	Gold	Gold
Contact Finish Thickness	4 Áin	4 Áin
Contact Finish Thickness	0.1 Ám	0.1 Ám
Features	Solder Retention, Board Guide	Solder Retention, Board Guide
Height Above Board	6.25 mm	6.25 mm
Height Above Board	0.246 in	0.246 in
Mounting Type	Surface Mount	Surface Mount
Number of Rows	1	1
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

CONN SOCKET VERT B-TO-B FLOATING

Part	Contact Finish	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness
IRISO USA Inc. IMSA-18021S-05A-GFN4	Gold	6.25 mm	0.246 in	Surface Mount	1	2.54 mm	0.1 in	Board Guide, Solder Retention	4 Áin	0.1 Ám
IRISO USA Inc. IMSA-18021S-03A-GFN4	Gold	6.25 mm	0.246 in	Surface Mount	1	2.54 mm	0.1 in	Board Guide, Solder Retention	4 Áin	0.1 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Connector Surface Mount Gold
