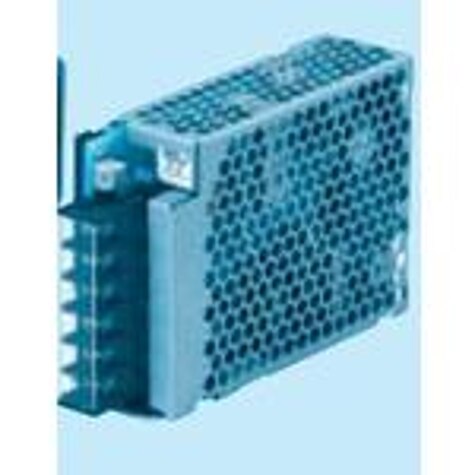

PBW50F-5-JN

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER +/-5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PBW50F-5-JN

Obsolete

Cosel USA, Inc.

AC/DC CONVERTER +/-5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBW50F-5-JN

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	3 A
Current - Output 2	4 A
Efficiency	77 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	4.72 in
Size / Dimension [x]	119.9 mm
Size / Dimension [y]	1.22 "
Size / Dimension [y]	31 mm
Size / Dimension [z]	3.23 in
Size / Dimension [z]	82 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

PBW50F Series

Part	Number of Outputs	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Efficiency	Current - Output 1	Voltage - Isolation	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Type	Approval Agency	Current - Output 2	Mounting Type	Features	Power (Watts)
Cosel USA, Inc. PBW50F-12-TN	2	12 V	-10 °C	71 °C	-12 V	83 %	2.1 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Enclosed	CE cURus TUV	2.7 A	Chassis Mount
Cosel USA, Inc. PBW50F-12-VN	2	12 V	-10 °C	71 °C	-12 V	83 %	2.1 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Enclosed	CE cURus TUV	2.7 A	Chassis Mount
Cosel USA, Inc. PBW50F-12-RN	2	12 V	-10 °C	71 °C	-12 V	83 %	2.1 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Enclosed	CE cURus TUV	2.7 A	Chassis Mount
Cosel USA, Inc. PBW50F-5-GN	2	5 V	-10 °C	71 °C	-5 V	77 %	3 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Enclosed	CE cURus TUV	4 A	Chassis Mount
Cosel USA, Inc. PBW50F-12-E	2	12 V	-10 °C	71 °C	-12 V	83 %	2.1 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Open Frame	CE cURus TUV	2.7 A	Chassis Mount
Cosel USA, Inc. PBW50F-5-G	2	5 V	-10 °C	71 °C	-5 V	77 %	3 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Open Frame	CE cURus TUV	4 A	Chassis Mount
Cosel USA, Inc. PBW50F-5-JN	2	5 V	-10 °C	71 °C	-5 V	77 %	3 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Enclosed	CE cURus TUV	4 A	Chassis Mount
Cosel USA, Inc. PBW50F-12-G	2	12 V	-10 °C	71 °C	-12 V	83 %	2.1 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Open Frame	CE cURus TUV	2.7 A	Chassis Mount
Cosel USA, Inc. PBW50F-15-G	2	15 V	-10 °C	71 °C	-15 V	83 %	1.7 A	3000 V	ITE (Commercial)	4.72 in	1.22 "	31 mm	3.23 in	119.9 mm	82 mm	Open Frame	CE cURus TUV		Chassis Mount
Cosel USA, Inc. PBW50F-5	2	5 V			-5 V	77 %	3 A		ITE (Commercial)							Enclosed	CE cURus TUV	4 A	Chassis Mount	DC Input Capable Universal Input	50 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PBW50F Series

Enclosed AC DC Converters 2 Output 5V -5V 85 ~ 264 VAC Input
