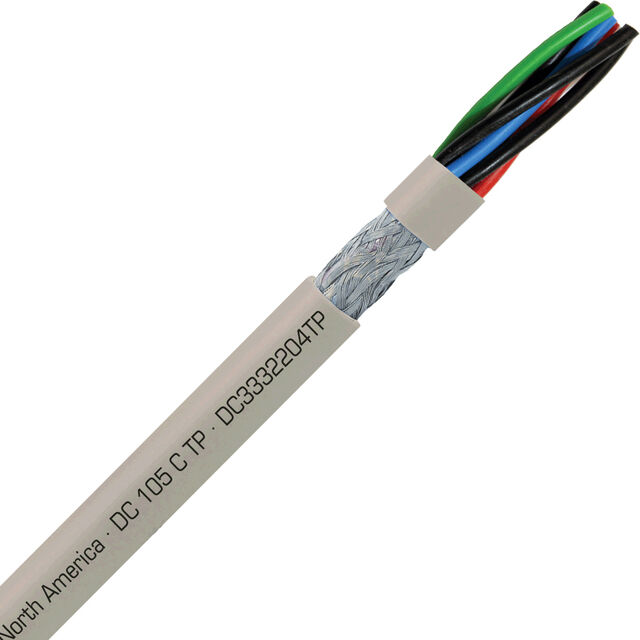

DC3332204TP

Active

SAB North America

MULTI-PAIR 8COND 22AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 8COND 22AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DC3332204TP	DC3332204 Series

Cable Type	Multi-Pair	Multi-Conductor, Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Features	Oil Resistant	Drain Wire, Oil Resistant
Jacket (Insulation) Diameter [diameter]	8.2 mm	5.69 - 8.2 mm
Jacket (Insulation) Diameter [diameter]	0.323 in	0.224 - 0.323 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray	Gray
Length	Enter Number of Feet in Order Quantity	Enter Number of Feet in Order Quantity
Number of Conductors	8	4 - 8
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shield Material	Copper, Tinned	Copper, Tinned
Shield Type	Foil, Braid	Foil, Braid
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

CABLE 4COND 22AWG GRY SHLD 1=1FT

Part	Wire Gauge	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Shield Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage	Features	Cable Type	Number of Conductors	Conductor Insulation
SAB North America DC3332204S	22 AWG	Enter Number of Feet in Order Quantity	5.69 mm	0.224 in	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Gray	-25 °C	105 ░C	Copper, Tinned	7	30 AWG	Braid, Foil	300 V	Drain Wire	Multi-Conductor	4	Poly-Vinyl Chloride (PVC)
SAB North America DC3332204TP	22 AWG	Enter Number of Feet in Order Quantity	8.2 mm	0.323 in	Poly-Vinyl Chloride (PVC)	Copper, Tinned	Gray	-25 °C	105 ░C	Copper, Tinned	7	30 AWG	Braid, Foil	300 V	Oil Resistant	Multi-Pair	8	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity

Technical documentation and resources
