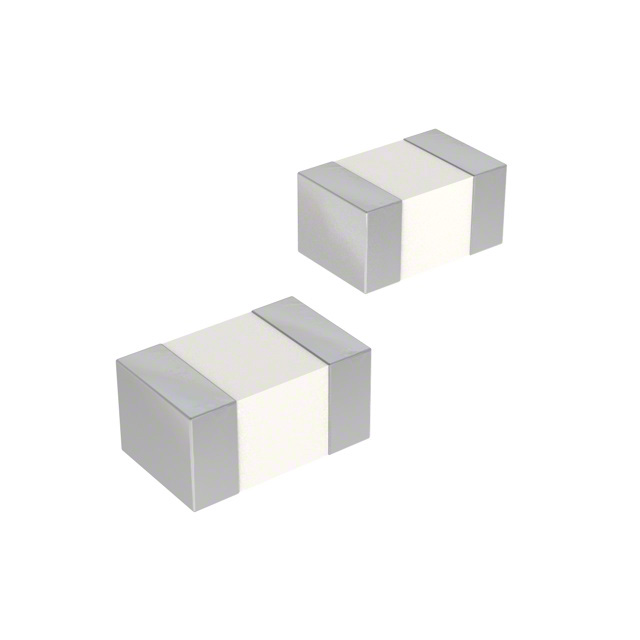

CI201210-8N2J

Obsolete

Bourns Inc.

FIXED IND 8.2NH 300MA 280MOHM SM

Search across all available documentation for this part.

Obsolete

Bourns Inc.

FIXED IND 8.2NH 300MA 280MOHM SM

Technical Specifications

Parameters and characteristics for this part

Specification	CI201210-8N2J

Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	280 mOhm
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Inductance	8.2 nH
Inductance Frequency - Test	100 MHz
Material - Core	Ceramic
Mounting Type	Surface Mount
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	0805
Q @ Freq	10, 100 MHz
Shielding	Unshielded
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Supplier Device Package	0805 (2012 Metric)
Tolerance	5 %
Type	Multilayer

Part	Package / Case	Q @ Freq	Tolerance	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Supplier Device Package	Inductance Frequency - Test	Current Rating (Amps)	Shielding	Operating Temperature [custom]	DC Resistance (DCR) [Max]
Bourns Inc. CI201210-8N2J	0805	10 100 MHz	5 %	Surface Mount	Multilayer	1.2 mm	0.047 in	Ceramic	2 mm	0.079 in	0.049 in	1.25 mm	8.2 nH	0805 (2012 Metric)	100 MHz	300 mA	Unshielded	-25 °C 100 °C	280 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8.2 nH Unshielded Multilayer Inductor 300 mA 280mOhm Max 0805 (2012 Metric)
