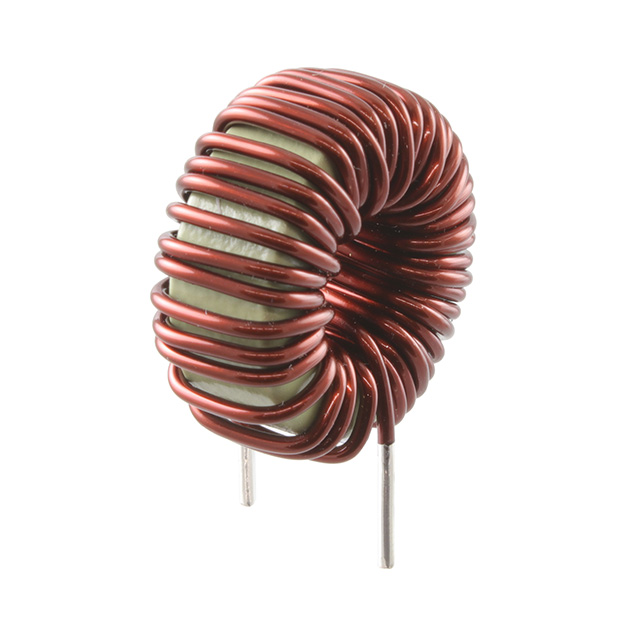

PHBC13 Series
81 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 6A DCR 24.7mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | PHBC13-1R2A0081V |
|---|---|
| Current Rating | 6 A |
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) | 24.7 mOhm |
| DC Resistance (DCR) (Max) | 24.7 mOhm |
| Height - Seated (Max) | 1.181 in |
| Height (Max) | 1.181 in |
| Inductance | 81 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2 PC Pin, No Base, Vertical |
| Package Name | Vertical, No Base |
| Pad Count | 2 PC Pin |
| Size / Dimension Diameter | 1.181 in |
