MICRO-LOCK PLUS TPA TYPE RECEPTACLE HOUSING, 1.25MM PITCH, SINGLE ROW, POSITIVE LOCK, 3 CIRCUITS, RED

2145260302

Active

Molex

MICRO-LOCK PLUS TPA TYPE RECEPTACLE HOUSING, 1.25MM PITCH, SINGLE ROW, POSITIVE LOCK, 3 CIRCUITS, RED

Description Specifications Series Pricing CAD Documents

Description

General part information

214526 Series

Micro-Lock Plus TPA Type Receptacle Housing, 1.25mm Pitch, Single Row, Positive Lock, 8 Circuits, Red

Technical Specifications

Parameters and characteristics for this part

Specification	2145260302

Color	Red
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.049 in

214526 Series

Micro-Lock Plus TPA Type Receptacle Housing, 1.25mm Pitch, Single Row, Positive Lock, 8 Circuits, Red

Part	Number of Rows	Pitch	Color	Contact Type	Contact Termination	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Mounting Type	Connector Type	Number of Positions	Features

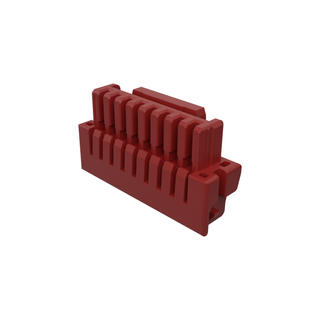

Molex 2145260802	1	0.049 in	Red	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	8	Terminal Position Lock (TPA)

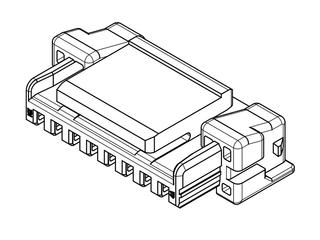

Molex 2145260603	1	0.049 in	Yellow	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	6	Terminal Position Lock (TPA)
Molex 2145260302	1	0.049 in	Red	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	3	Terminal Position Lock (TPA)
Molex 2145260903	1	0.049 in	Yellow	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	9	Terminal Position Lock (TPA)
Molex 2145260403	1	0.049 in	Yellow	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	4	Terminal Position Lock (TPA)
Molex 2145260203	1	0.049 in	Yellow	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	2	Terminal Position Lock (TPA)
Molex 2145260504	1	0.049 in	Blue	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	5	Terminal Position Lock (TPA)
Molex 2145260601	1	0.049 in	Black	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	6	Terminal Position Lock (TPA)
Molex 2145260304	1	0.049 in	Blue	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	3	Terminal Position Lock (TPA)

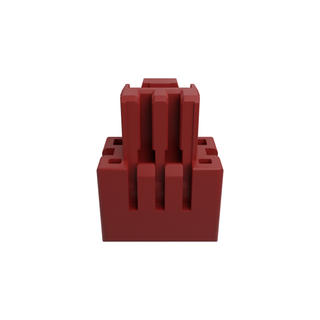

Molex 2145260202	1	0.049 in	Red	Female Socket	Crimp	Polybutylene Terephthalate (PBT)	-40 °C	105 °C	Latch Lock	Free Hanging (In-Line)	Receptacle	2	Terminal Position Lock (TPA)
