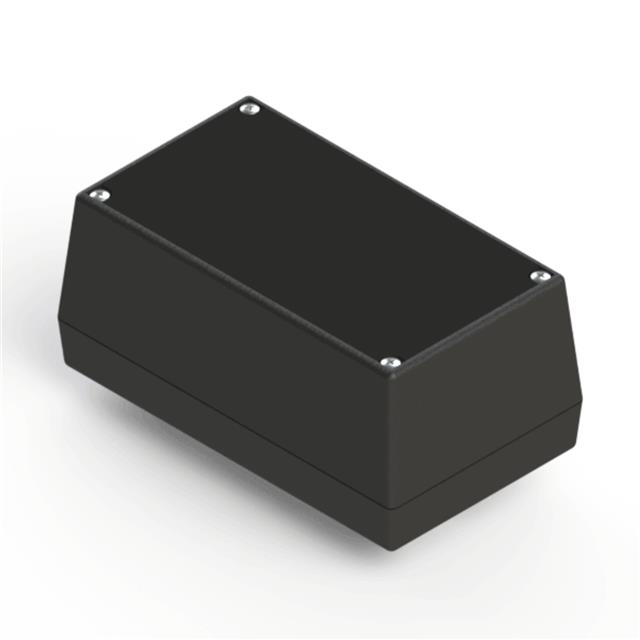

153RI,BK

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.62"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	153RI,BK

Area (L x W)	118 cm²
Area (L x W)	18.3 in²
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	142.75 mm
Size / Dimension [x]	5.62 in
Size / Dimension [y]	3.25 "
Size / Dimension [y]	82.55 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.291 lb
Weight	132 g

Part	Ratings	Container Type	Thickness	Thickness	Color	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Area (L x W)	Design	Weight	Weight	Height [z]	Height [z]	Material	Material Flammability Rating
Serpac 153R,GY	IP40 NEMA 1	Box	2.54 mm	0.1 in	Gray	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,BK	IP40 NEMA 1	Box	2.54 mm	0.1 in	Black	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,AL	IP40 NEMA 1	Box	2.54 mm	0.1 in	Almond	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB
Serpac 153RI,GY	IP40 NEMA 1	Box	2.54 mm	0.1 in	Gray	Front Access PCB Supports	3.25 "	142.75 mm	82.55 mm	5.62 in	18.3 in²	118 cm²	Hand Held Split Sides	0.291 lb	132 g	63.5 mm	2.5 in	Plastic ABS	UL94 HB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 5.620" L x 3.250" W (142.75mm x 82.55mm) X 2.500" (63.50mm)
