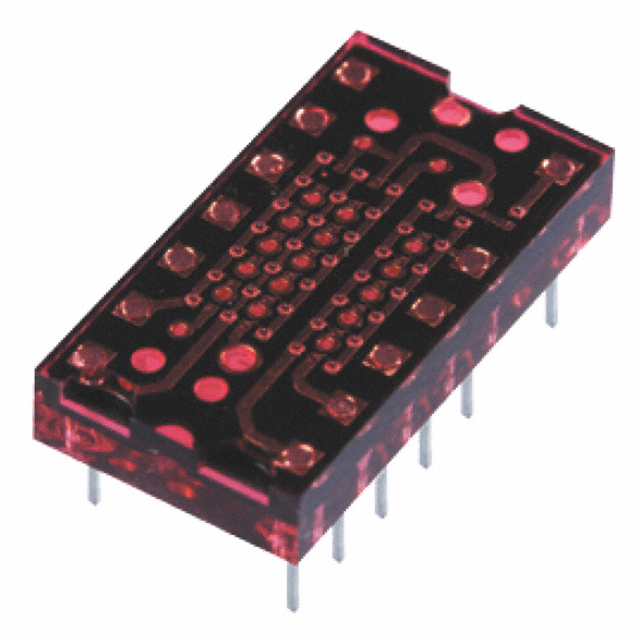

XMUR07A

Active

SunLED

LED DOT MATRIX 5X7 0.3" RED CA

Search across all available documentation for this part.

Active

SunLED

LED DOT MATRIX 5X7 0.3" RED CA

Technical Specifications

Parameters and characteristics for this part

Specification	XMUR07A

Color	Red
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Anode Column, Common Cathode Row
Millicandela Rating	2 mcd
Size / Dimension [x]	0.73 in
Size / Dimension [x]	18.5 mm
Size / Dimension [y]	9.8 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	0.12 in
Size / Dimension [z]	3.1 mm
Voltage - Forward (Vf) (Typ)	1.9 V

Part	Internal Connection	Configuration [y]	Configuration [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating
SunLED XMUR07A	Common Anode Column Common Cathode Row	7	5	9.8 mm	0.39 "	0.12 in	3.1 mm	0.73 in	18.5 mm	1.9 V	Red	2 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	135	$ 2.94

General part information

Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 1.9V 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm)
