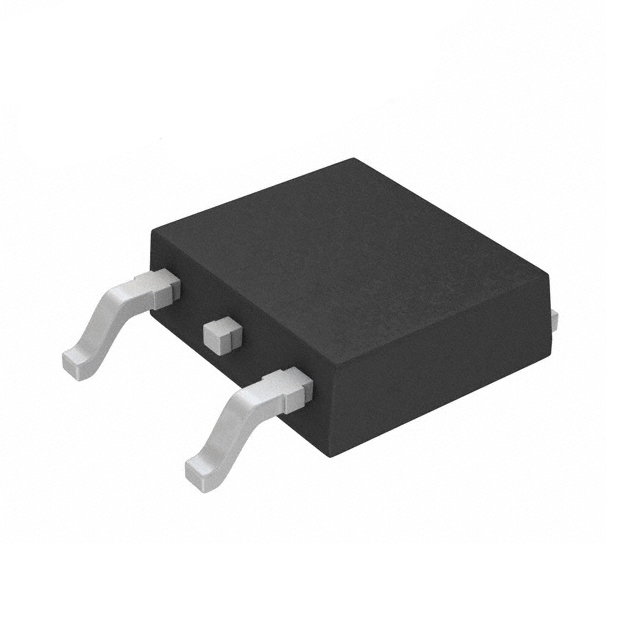

AIHD10N60RFATMA1

Active

Infineon Technologies

IGBT TRENCH FS 600V 20A TO252-3

Search across all available documentation for this part.

Active

Infineon Technologies

IGBT TRENCH FS 600V 20A TO252-3

Technical Specifications

Parameters and characteristics for this part

Specification	AIHD10N60RFATMA1

Current - Collector (Ic) (Max)	20 A
Current - Collector Pulsed (Icm)	30 A
Gate Charge	64 nC
IGBT Type	Trench Field Stop
Mounting Type	Surface Mount
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Power - Max [Max]	150 W
Supplier Device Package	PG-TO252-3-313
Switching Energy	190 µJ, 160 µJ
Td (on/off) @ 25°C	12 ns
Td (on/off) @ 25°C	168 ns
Test Condition	10 A, 15 V, 400 V, 26 Ohm
Vce(on) (Max) @ Vge, Ic	2.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

Part	IGBT Type	Power - Max [Max]	Current - Collector Pulsed (Icm)	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Supplier Device Package	Gate Charge	Package / Case	Test Condition	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Current - Collector (Ic) (Max)	Switching Energy
Infineon Technologies AIHD10N60RFATMA1	Trench Field Stop	150 W	30 A	-40 C	175 °C	2.5 V	600 V	Surface Mount	PG-TO252-3-313	64 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 26 Ohm 400 V	12 ns	168 ns	20 A	160 µJ 190 µJ
Infineon Technologies AIHD10N60RATMA1	Trench Field Stop	150 W	30 A	-40 C	175 °C	2.1 V	600 V	Surface Mount	PG-TO252-3-313	64 nC	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 A 15 V 23 Ohm 400 V			20 A	210 µJ 380 µJ
