TMC5160SILENTSTEPSTICK
ActiveAnalog Devices Inc./Maxim Integrated

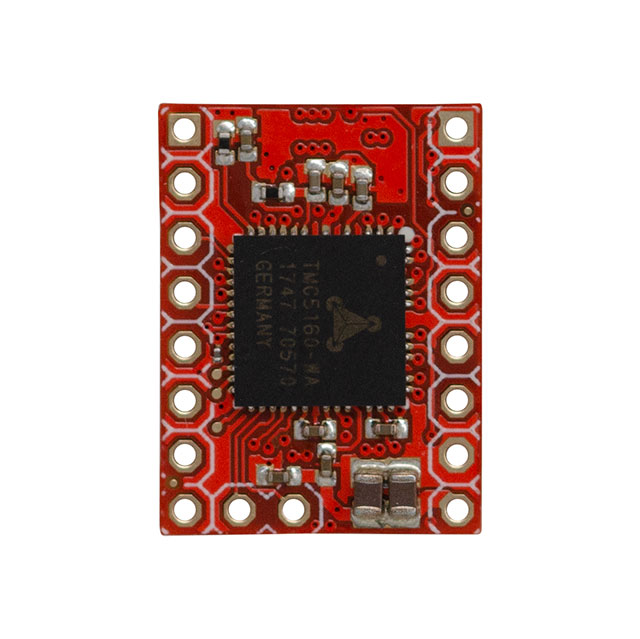

TMC5160 STEPPER DRIVER BOARD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC5160SILENTSTEPSTICK
ActiveAnalog Devices Inc./Maxim Integrated
TMC5160 STEPPER DRIVER BOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC5160SILENTSTEPSTICK | TMC5160 Series |
|---|---|---|
| Applications | - | Industrial, Automation Control, Medical |
| Contents | Board(s) | Board(s) |
| Current - Output | - | 20 A |
| Function | - | Driver - Fully Integrated, Control and Power Stage |
| Interface | - | Step/Direction, SPI |
| Motor Type - AC, DC | - | Universal |
| Motor Type - Stepper | - | Bipolar |
| Mounting Type | - | Surface Mount, Wettable Flank |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 125 ¯C |
| Output Configuration | - | Half Bridge (4) |
| Package / Case | - | 48-TQFP Exposed Pad, 47-VFQFN Exposed Pad |
| Primary Attributes | Motors (Stepper) | Motors (Stepper) |
| Secondary Attributes | SPI Interface(s) | SPI Interface(s) |
| Step Resolution | - | 1 |
| Step Resolution | - | 0.00390625 |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-TQFP-EP (7x7), 56-QFN (8x8) |
| Technology | - | Power MOSFET, BCD MOS External Power MOSFETs |
| Type | Power Management | Power Management |
| Utilized IC / Part | TMC5160 | TMC5160 |
| Voltage - Load | - | 10 V |
| Voltage - Load | - | 55 V |
| Voltage - Supply | - | 50 VDC |
| Voltage - Supply | - | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.78 | |
TMC5160 Series
IC MTR DRVR BIPOLAR 8-60V 48TQFP
| Part | Voltage - Load [Min] | Voltage - Load [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Function | Motor Type - Stepper | Package / Case | Technology | Output Configuration | Interface | Motor Type - AC, DC | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Output | Step Resolution [Max] | Step Resolution [Min] | Supplier Device Package | Utilized IC / Part | Contents | Supplied Contents | Type | Primary Attributes | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC5160A-TA | 10 V | 55 V | -40 °C | 125 ¯C | Automation Control, Industrial, Medical | Driver - Fully Integrated, Control and Power Stage | Bipolar | 48-TQFP Exposed Pad | Power MOSFET | Half Bridge (4) | SPI, Step/Direction | Universal | Surface Mount | 50 VDC | 10 VDC | 20 A | 1 | 0.00390625 | 48-TQFP-EP (7x7) | ||||||
Analog Devices Inc./Maxim Integrated TMC5160-EVAL-KIT | TMC5160 | Board(s) | Board(s) | Power Management | Motors (Stepper) | SPI Interface(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5160SILENTSTEPSTICK | TMC5160 | Board(s) | Board(s) | Power Management | Motors (Stepper) | SPI Interface(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5160-EVAL | TMC5160 | Board(s) | Board(s) | Power Management | Motors (Stepper) | SPI Interface(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5160A-TA-T | 10 V | 55 V | -40 °C | 125 ¯C | Automation Control, Industrial, Medical | Driver - Fully Integrated, Control and Power Stage | Bipolar | 48-TQFP Exposed Pad | Power MOSFET | Half Bridge (4) | SPI, Step/Direction | Universal | Surface Mount | 50 VDC | 10 VDC | 20 A | 1 | 0.00390625 | 48-TQFP-EP (7x7) | ||||||
Analog Devices Inc./Maxim Integrated TMC5160-BOB | TMC5160 | Board(s) | Board(s) | Power Management | Motors (Stepper) | SPI Interface(s) | |||||||||||||||||||
Analog Devices Inc./Maxim Integrated TMC5160-TA | 10 V | 55 V | -40 °C | 125 ¯C | Industrial | Driver - Fully Integrated, Control and Power Stage | Bipolar | 48-TQFP Exposed Pad | BCD MOS External Power MOSFETs | Half Bridge (4) | SPI, Step/Direction | Surface Mount | 50 VDC | 10 VDC | 20 A | 1 | 0.00390625 | 48-TQFP-EP (7x7) | |||||||
Analog Devices Inc./Maxim Integrated TMC5160-TA-T | 10 V | 55 V | -40 °C | 125 ¯C | Industrial | Driver - Fully Integrated, Control and Power Stage | Bipolar | 48-TQFP Exposed Pad | BCD MOS External Power MOSFETs | Half Bridge (4) | SPI, Step/Direction | Surface Mount | 50 VDC | 10 VDC | 20 A | 1 | 0.00390625 | 48-TQFP-EP (7x7) | |||||||
Analog Devices Inc./Maxim Integrated TMC5160A-WA | 10 V | 55 V | -40 °C | 125 ¯C | Automation Control, Industrial, Medical | Driver - Fully Integrated, Control and Power Stage | Bipolar | 47-VFQFN Exposed Pad | Power MOSFET | Half Bridge (4) | SPI, Step/Direction | Universal | Surface Mount, Wettable Flank | 50 VDC | 10 VDC | 20 A | 1 | 0.00390625 | 56-QFN (8x8) |
Description
General part information
TMC5160 Series
TMC5160 Motor Controller/Driver, Stepper Power Management Evaluation Board
