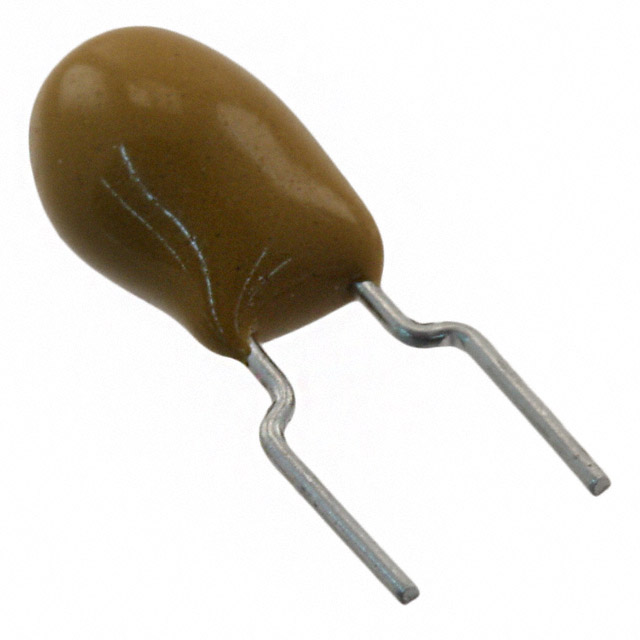

T356G475K050AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 50 V, ± 10%, PC PIN, 5 MM, 2.5 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLAR, 4.7 ΜF, 50 V, ± 10%, PC PIN, 5 MM, 2.5 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	T356G475K050AT

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	2.5 Ohm
Features	General Purpose
Height - Seated (Max) [Max]	11.4 mm
Height - Seated (Max) [Max]	0.449 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	G
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	50 VDC

Part	Capacitance	Type	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]
KEMET T356G106K035AT	10 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	35 V	10 %	Radial	2 Ohms	11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G475K050AS	4.7 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	50 VDC	10 %	Radial	2.5 Ohm	11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G106M035AT7301	10 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	35 V	20 %	Radial		11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G107K003AT7301	100 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	3 VDC	10 %	Radial		11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G156K025AS	15 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	25 VDC	10 %	Radial	2 Ohms	11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G106J035AT	10 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	35 V	5 %	Radial	2 Ohm	11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C
KEMET T356G475K050AT	4.7 µF	Conformal Coated	Through Hole	0.248 in	6.3 mm	5.08 mm	0.2 in	50 VDC	10 %	Radial	2.5 Ohm	11.4 mm	0.449 in	General Purpose	G	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF Conformal Coated Tantalum Capacitors 50 V Radial 2.5Ohm
