FTM-106-03-L-DV-S-TR
ActiveSamtec Inc.

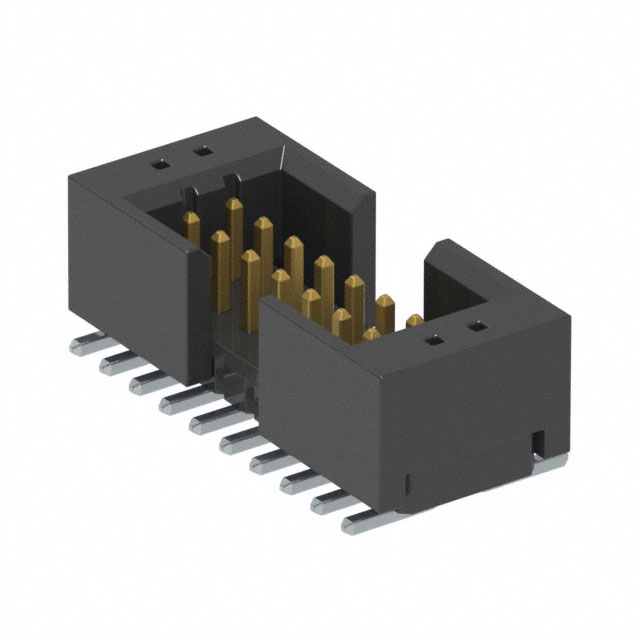

CONN HEADER SMD 12POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FTM-106-03-L-DV-S-TR
ActiveSamtec Inc.
CONN HEADER SMD 12POS 1MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FTM-106-03-L-DV-S-TR |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 0.065 in |
| Contact Length - Mating | 1.65 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.8 A per Contact |
| Fastening Type | Push-Pull |
| Features | End Shrouds |
| Insulation Color | Black |
| Insulation Height | 0.038 in |
| Insulation Height | 0.97 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTM-106 Series
| Part | Contact Finish - Post | Insulation Color | Features | Number of Positions | Fastening Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Termination | Insulation Height | Insulation Height | Contact Shape | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Connector Type | Shrouding | Insulation Material | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Contact Length - Mating [x] | Contact Length - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Tin | Black | End Shrouds | 12 | Push-Pull | 2 | 0.039 in | 1 mm | 0.065 in | 1.65 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 10 çin | 0.25 çm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | ||
Samtec Inc. | Tin | Black | Board Guide End Shrouds | 12 | Push-Pull | 2 | 0.039 in | 1 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 10 çin | 0.25 çm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | 1.9 mm | 0.075 in | ||
Samtec Inc. | Tin | Black | End Shrouds | 12 | Push-Pull | 2 | 0.039 in | 1 mm | 0.065 in | 1.65 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 10 çin | 0.25 çm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | ||
Samtec Inc. | Tin | Black | 12 | Push-Pull | 2 | 0.039 in | 1 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 10 çin | 0.25 çm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | 1.9 mm | 0.075 in | |||
Samtec Inc. | Tin | Black | 12 | Push-Pull | 2 | 0.039 in | 1 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 3 µin | 0.076 µm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | 1.9 mm | 0.075 in | |||
Samtec Inc. | Tin | Black | 12 | Push-Pull | 2 | 0.039 in | 1 mm | 0.065 in | 1.65 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 10 çin | 0.25 çm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | |||
Samtec Inc. | Tin | Black | End Shrouds | 12 | Push-Pull | 2 | 0.039 in | 1 mm | 0.065 in | 1.65 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 3 µin | 0.076 µm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount | ||
Samtec Inc. | Tin | Black | 12 | Push-Pull | 2 | 0.039 in | 1 mm | 0.065 in | 1.65 mm | Solder | 0.038 in | 0.97 mm | Square | Male Pin | 0.039 " | 1 mm | Phosphor Bronze | 3 µin | 0.076 µm | All | Cuttable Header | Unshrouded | Liquid Crystal Polymer (LCP) | Gold | -55 °C | 125 °C | 2.8 A per Contact | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1125 | $ 2.02 | |
Description
General part information
FTM-106 Series
Connector Header Surface Mount 12 position 0.039" (1.00mm)
Documents
Technical documentation and resources
