104345-1
ActiveTE Connectivity AMP Connectors

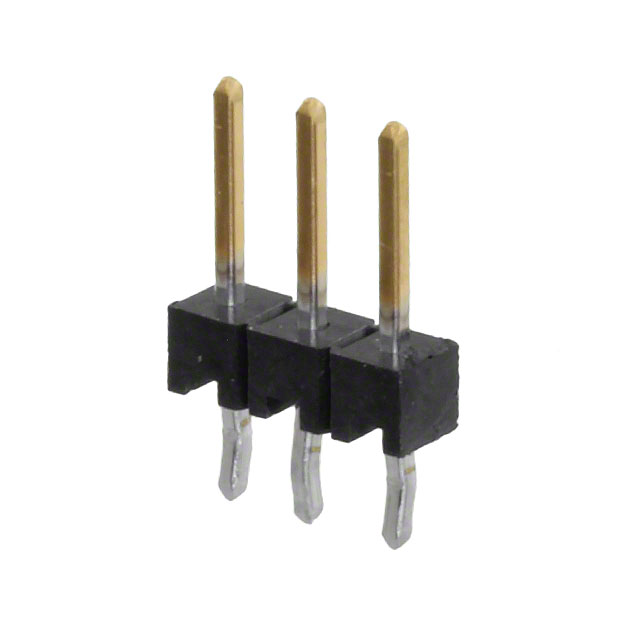

CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104345-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 3POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104345-1 | 104345 Series |
|---|---|---|
| Connector Type | Breakaway, Header | Breakaway, Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post [x] | 0.12 in | 0.12 in |
| Contact Length - Post [x] | 3.05 mm | 3.05 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.09 in | 0.09 in |
| Insulation Height | 2.29 mm | 2.29 mm |
| Insulation Material | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | - | 6 - 13 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Overall Contact Length | 0.44 in | 0.44 in |
| Overall Contact Length | 11.18 mm | 11.18 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Kinked Pin, Solder | Kinked Pin, Solder |
| Voltage Rating | 30 VAC | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.47 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.28 | |||
| 1000 | $ 0.27 | |||
| 5000 | $ 0.23 | |||
| 10000 | $ 0.22 | |||
104345 Series
CONN HEADER VERT 13POS 2.54MM
| Part | Contact Type | Contact Length - Mating [x] | Contact Length - Mating | Mounting Type | Fastening Type | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Height | Insulation Height | Contact Material | Contact Finish - Post | Connector Type | Overall Contact Length | Overall Contact Length | Voltage Rating | Pitch - Mating | Pitch - Mating | Insulation Material | Insulation Color | Shrouding | Current Rating (Amps) | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Number of Positions Loaded | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-104345-1 | Male Pin | 0.23 in | 5.84 mm | Through Hole | Push-Pull | Square | 2.54 µm | 100 µin | 0.09 in | 2.29 mm | Copper Alloy | Tin-Lead | Breakaway, Header | 0.44 in | 11.18 mm | 30 VAC | 0.1 in | 2.54 mm | Thermoplastic | Black | Unshrouded | 3 A | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | -65 ░C | 105 ░C | 0.12 in | 3.05 mm | Kinked Pin, Solder | All | Board to Board, Cable | 13 |
TE Connectivity AMP Connectors 104345-4 | Male Pin | 0.23 in | 5.84 mm | Through Hole | Push-Pull | Square | 2.54 µm | 100 µin | 0.09 in | 2.29 mm | Copper Alloy | Tin-Lead | Breakaway, Header | 0.44 in | 11.18 mm | 30 VAC | 0.1 in | 2.54 mm | Thermoplastic | Black | Unshrouded | 3 A | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | -65 ░C | 105 ░C | 0.12 in | 3.05 mm | Kinked Pin, Solder | All | Board to Board, Cable | 6 |
TE Connectivity AMP Connectors 104345-1 | Male Pin | 0.23 in | 5.84 mm | Through Hole | Push-Pull | Square | 2.54 µm | 100 µin | 0.09 in | 2.29 mm | Copper Alloy | Tin-Lead | Breakaway, Header | 0.44 in | 11.18 mm | 30 VAC | 0.1 in | 2.54 mm | Thermoplastic | Black | Unshrouded | 3 A | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | -65 ░C | 105 ░C | 0.12 in | 3.05 mm | Kinked Pin, Solder | All | Board to Board, Cable |
Description
General part information
104345 Series
Connector Header Through Hole 3 position 0.100" (2.54mm)
